RY530024

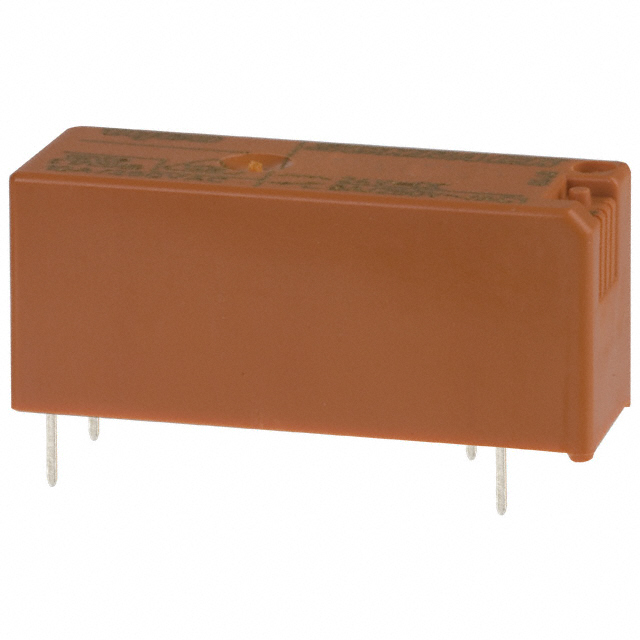

lmages are for reference only.RY530024
RELAY GEN PURPOSE SPST 8A 24V
Datasheet-
68,230 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
RY530024
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RY, SCHRACK |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 3200VA |
| Coil Current | 10.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.35 kOhms |
| Base Product Number | RY5300 |
| Product Attribute |  |
 |
 |
 |
| Part Number | RY530005 | RY530006 | RY530012 | RY530018 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| RoHS Status | RoHS Compliant | |||
| Description | RELAY GEN PURPOSE SPST 8A 5V | RELAY GEN PURPOSE SPST 8A 6V | RELAY GEN PURPOSE SPST 8A 12V | General Purpose Relays 18V 8A 1N |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| Packaging | Tube | Tray | Tube | Tube |
