S16LCC05-8

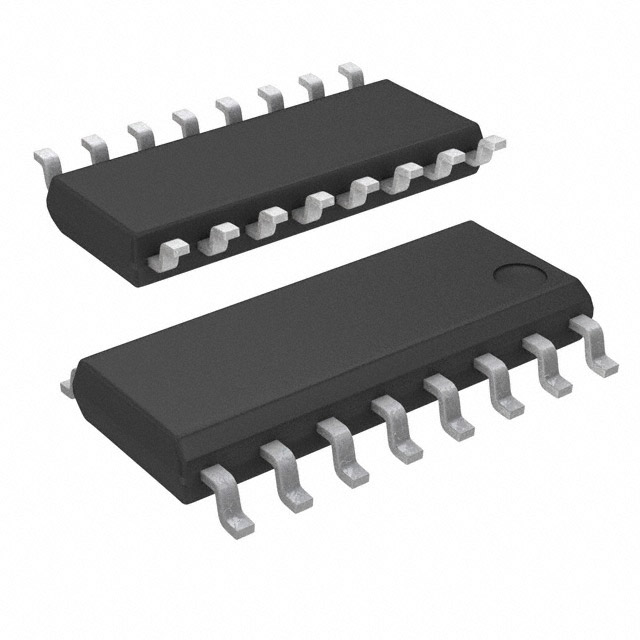

lmages are for reference only.S16LCC05-8
TVS DIODE 5VWM 9.8VC 16SO
Datasheet16-SOIC (0.154", 3.90mm Width)
34,526 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.8V Clamp 1A Ipp Tvs Diode Surface Mount 16-SO
S16LCC05-8
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | SMC Diode Solutions |
| Series | S16LCCXX-8 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 8 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.8V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | Ethernet, Telecom |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | S16LCC05 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | S16LCC03-8 | S16LC03-8 | S16LC05-8 | S16LC12-8 |
| Manufacturer | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 7VC 16SO | TVS DIODE 3.3VWM 7VC 16SO | TVS DIODE 5VWM 9.8VC 16SO | TVS DIODE 12VWM 19VC 16SO |
| Series | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions | SMC Diode Solutions |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
