S25FL512SAGBHIA10

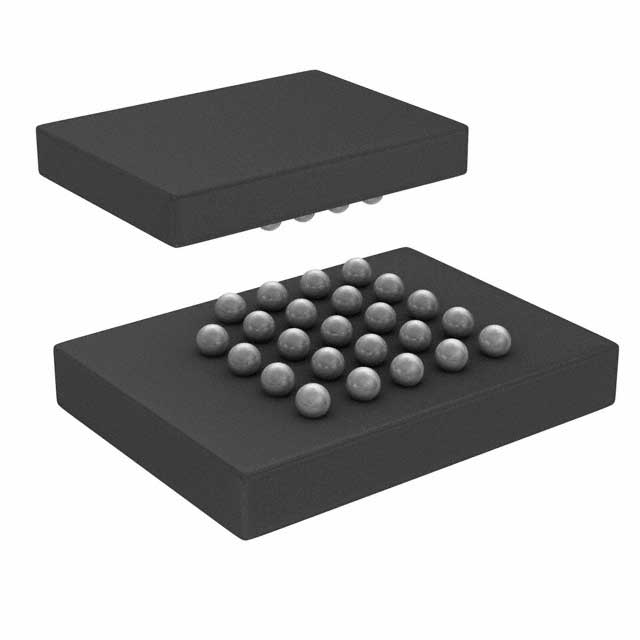

lmages are for reference only.S25FL512SAGBHIA10
FLASH - NOR 128MBIT 8M X 16 2.7V
Datasheet24-TBGA
47,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH - NOR Memory IC 512Mbit SPI - Quad I/O 133 MHz 24-BGA (8x6)
S25FL512SAGBHIA10
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Cypress Semiconductor Corp |
| Series | FL-S |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 512Mbit |
| Memory Organization | 64M x 8 |
| Memory Interface | SPI - Quad I/O |
| Clock Frequency | 133 MHz |
| Write Cycle Time - Word, Page | - |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TBGA |
| Supplier Device Package | 24-BGA (8x6) |
| Base Product Number | S25FL512 |
| Access Time | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | S25FL512SAGBHIA10 | S25FL512SAGBHIA13 | S25FL512SAGBHI210 | S25FL512SAGBHI210 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC FLASH 512MBIT SPI/QUAD 24BGA | IC FLASH 512MBIT SPI/QUAD 24BGA | IC FLASH 512MBIT SPI/QUAD 24BGA | IC FLASH 512MBIT SPI/QUAD 24BGA |
| Series | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp | Infineon Technologies |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tray |
