S25FS128SAGNFM100
lmages are for reference only.S25FS128SAGNFM100
IC FLASH 128MBIT SPI/QUAD 8WSON
Datasheet8-WDFN Exposed Pad
81,502 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH - NOR Memory IC 128Mbit SPI - Quad I/O, QPI 133 MHz 8-WSON (5x6)
S25FS128SAGNFM100
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Infineon Technologies |
| Series | FS-S |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 128Mbit |
| Memory Organization | 16M x 8 |
| Memory Interface | SPI - Quad I/O, QPI |
| Clock Frequency | 133 MHz |
| Write Cycle Time - Word, Page | 2ms |
| Voltage - Supply | 1.7V ~ 2V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (5x6) |
| Base Product Number | S25FS128 |
| Access Time | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

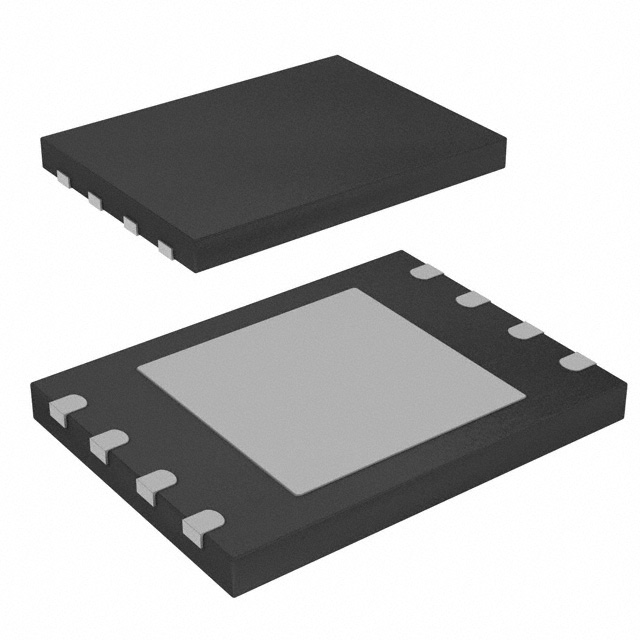

| Part Number | S25FS128SAGNFM103 | S25FS128SAGBHB200 | S25FS128SAGBHB203 | S25FS128SAGBHI200 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ||

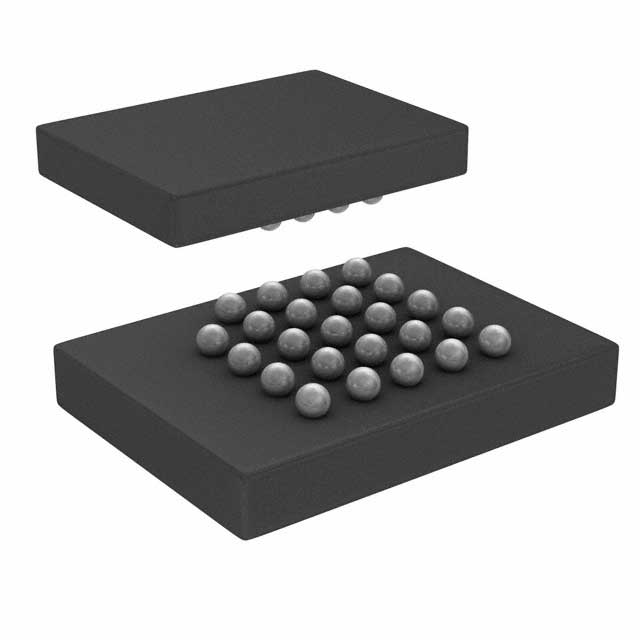

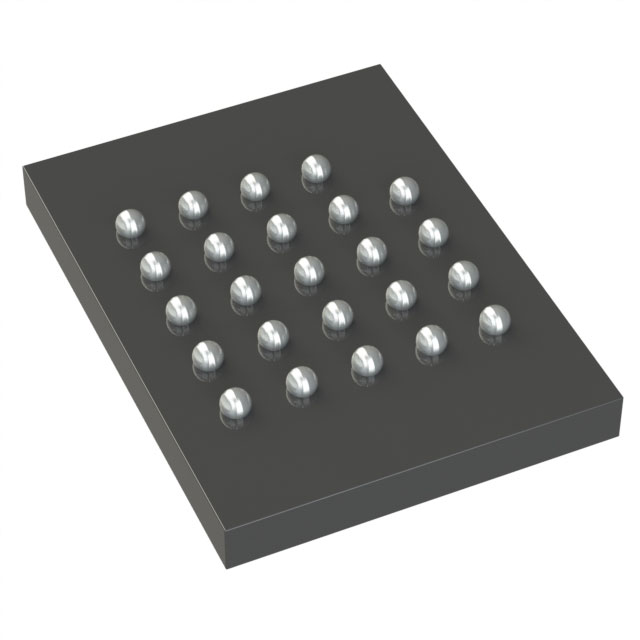

| Description | IC FLASH 128MBIT SPI/QUAD 8WSON | IC FLASH 128MBIT SPI/QUAD 24BGA | IC FLASH 128MBIT SPI/QUAD 24BGA | FLASH - NOR MEMORY IC 128MB (16M |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Cypress Semiconductor Corp |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) | Tray |
