S30S2T0D24ZJ
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 2000A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
S30S2T0D24ZJ
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | S30S D24 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 2000A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | - |
| Frequency | DC ~ 150kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.3% |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 500ns |
| Current - Supply (Max) | 45mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

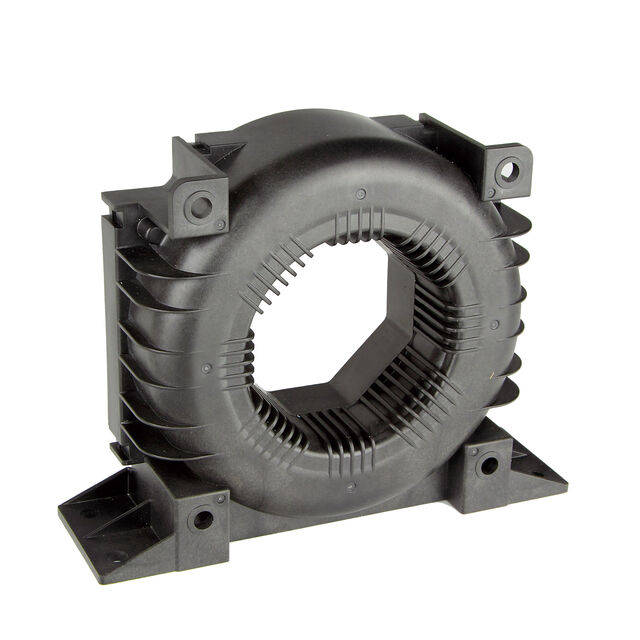

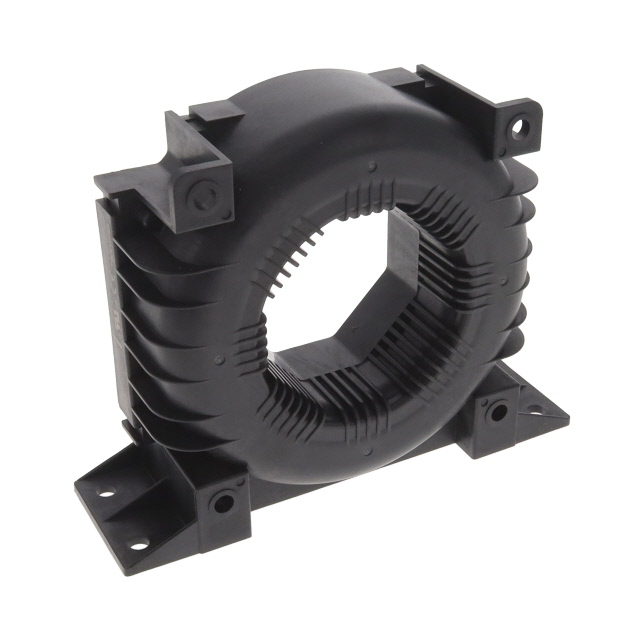

| Part Number | S30S2T0D24Z | S30S2T0D24ZM | CSNF151-001 | CSLA1GF |
| Manufacturer | Tamura | Tamura | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CURRENT SENSOR (2000A; 24V; 5000 | CURRENT SENSOR (2000A; 24V; 5000 | SENSOR CURRENT HALL 180A AC/DC | SENSOR CURRENT HALL 100A AC/DC |
| Series | Tamura | Tamura | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Tray | Tray | Bulk | Bulk |
