S87R5A2B1D1-24

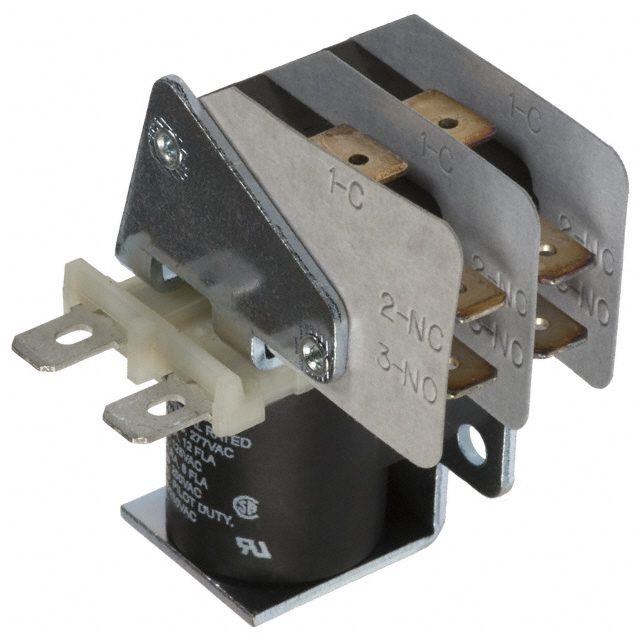

lmages are for reference only.S87R5A2B1D1-24
RELAY GEN PURPOSE SPDT 20A 24V
Datasheet-
21,004 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 24VAC Coil Chassis Mount
S87R5A2B1D1-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | S87R |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 5540VA |
| Coil Current | 165 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 20.4 VAC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -10°C ~ 65°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 32 Ohms |
| Base Product Number | S87R5A |
| Product Attribute |  |
 |
 |
 |
| Part Number | S87R5A2B1D1-240 | S87R11A2B1D1-24 | S87R11A2B1D1240 | S87R11D2B1D1-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPDT 20A 240V | RELAY GEN PURPOSE DPDT 20A 24V | RELAY GEN PURPOSE DPDT 20A 240V | RELAY GEN PURPOSE DPDT 20A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Bulk | Bulk | Tray |
