S89R11DPP1-24
lmages are for reference only.S89R11DPP1-24
RELAY IMPULSE SPDT 15A 24V
Datasheet-
98,204 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Impulse Relay SPDT (1 Form C) 24VDC Coil Socketable
S89R11DPP1-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | S89R |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 4155VA |
| Coil Current | 260.9 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | Plug In, 8 Pin (Octal) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -10°C ~ 60°C |
| Contact Material | - |
| Approval Agency | CSA, UR |
| Relay Type | Impulse |
| Grade | - |
| Qualification | - |
| Coil Resistance | 92 Ohms |
| Base Product Number | S89R11 |
| Product Attribute |  |
 |
 |
 |

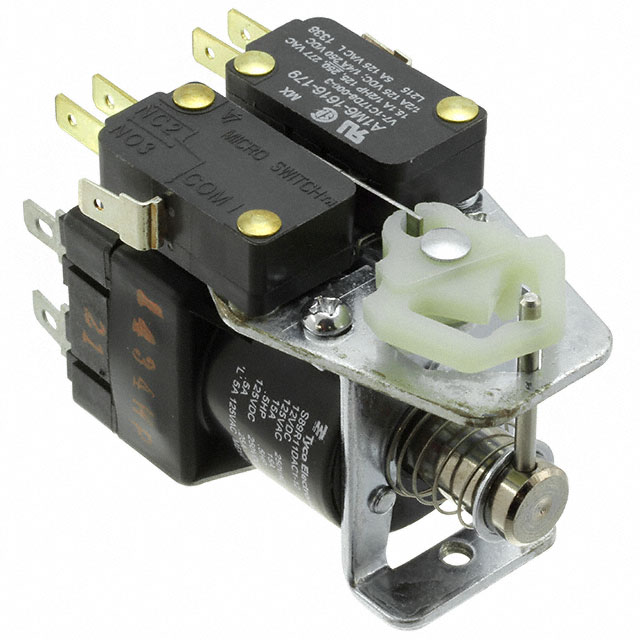

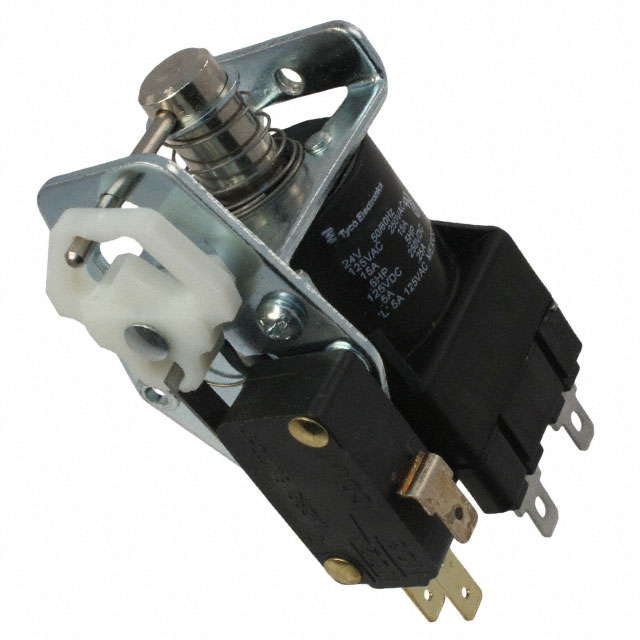

| Part Number | S89R11DPP1-12 | S89R11DAC1-12 | S89R11DAC1-24 | S89R11DAC1-6 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | RELAY IMPULSE DPDT 15A 12V | RELAY IMPULSE DPDT 15A 12V | RELAY IMPULSE DPDT 15A 24V | RELAY IMPULSE DPDT 15A 6V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Bulk | Bulk | Bulk |
