SA03-11GWA
lmages are for reference only.SA03-11GWA
DISPLAY 7SEG 0.3" SGL GRN 14DIP
Datasheet14-DIP (0.300", 7.62mm)
104,481 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
SA03-11GWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) |
| Digit/Alpha Size | 0.30" (7.62mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Green |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Millicandela Rating | 11mcd |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 62.5mW |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | SA03-11 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

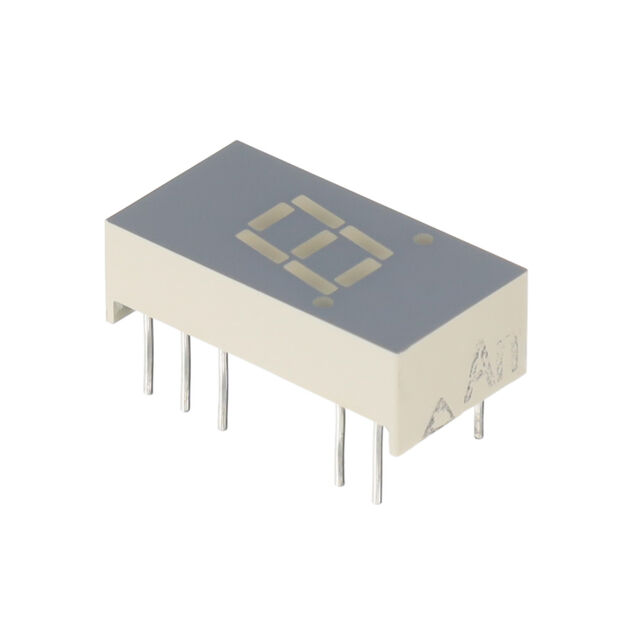

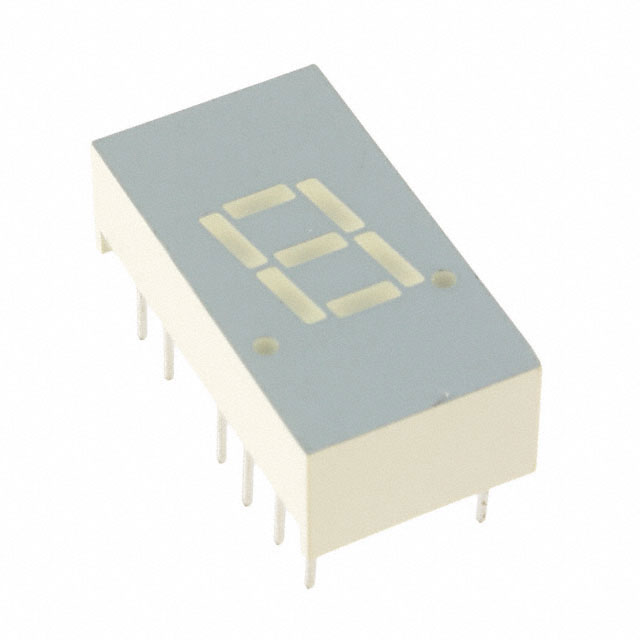

| Part Number | SA03-11CGKWA | SA03-11EWA | SA03-11SRWA | SA03-11SURKWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.3" SGL GRN 14DIP | DISPLAY 7-SEG 0.3" SGL RED 14DIP | DISPLAY 7-SEG 0.3" SGL RED 14DIP | DISPLAY 7-SEG 0.3" SGL RED 14DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
