SA170A

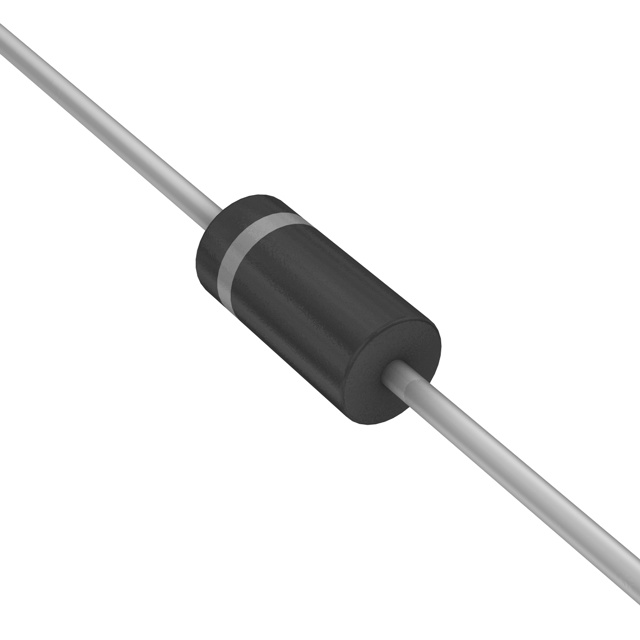

lmages are for reference only.SA170A
TVS DIODE 170VWM 275VC DO204AC
DatasheetDO-204AC, DO-15, Axial
42,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
275V Clamp 100mA Ipp Tvs Diode Through Hole DO-204AC (DO-15)
SA170A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 170V |
| Voltage - Breakdown (Min) | 189V |
| Voltage - Clamping (Max) @ Ipp | 275V |
| Current - Peak Pulse (10/1000µs) | 100mA |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | SA170 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | SA170 | SA170 | SA170-B | SA170A |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | TVS DIODE 170VWM 288.75V DO204AC | 500W, 210V, UNIDIRECTIONAL, TVS | TVS DIODE 170VWM 275VC DO204AC | TVS DIODE 170VWM 275VC DO15 |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | onsemi |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
