SA17A-E3/54

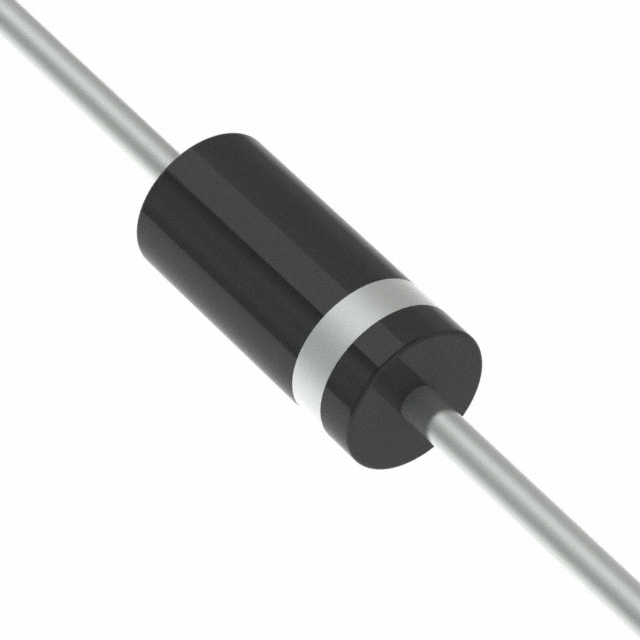

lmages are for reference only.SA17A-E3/54
TVS DIODE 17VWM 27.6VC DO204AC
DatasheetDO-204AC, DO-15, Axial
74,414 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.6V Clamp 18.1A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
SA17A-E3/54
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 17V |
| Voltage - Breakdown (Min) | 18.9V |
| Voltage - Clamping (Max) @ Ipp | 27.6V |
| Current - Peak Pulse (10/1000µs) | 18.1A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | SA17 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | SA17A | SA17A | SA17A | SA17A-AP |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | onsemi | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 17VWM 27.7VC DO204AC | TVS DIODE 17VWM 27.6VC DO204AC | TVS DIODE 17VWM 27.6VC DO15 | Interface |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | onsemi | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
