SA36

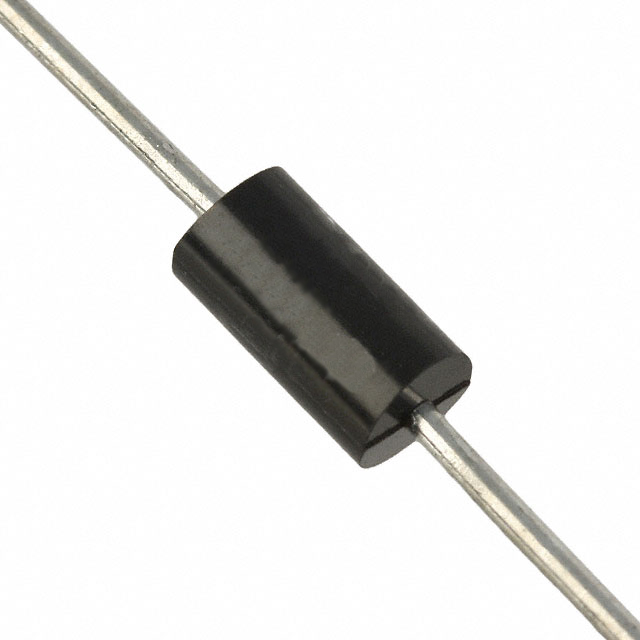

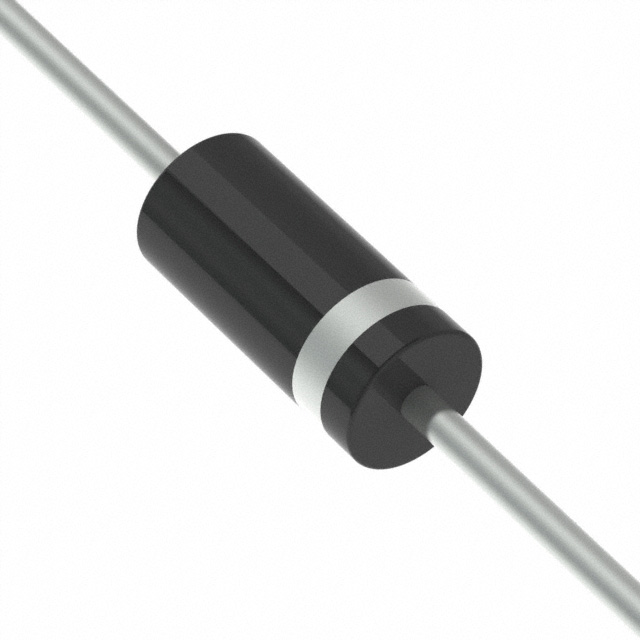

lmages are for reference only.SA36
500W, 44.5V, 10%, UNIDIRECTIONAL
DatasheetDO-204AC, DO-15, Axial
12,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
64.5V Clamp 8.1A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
SA36
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Current - Peak Pulse (10/1000µs) | 8.1A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | SA36 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |
| Part Number | SA30 | SA30 | SA30-B | SA30-E3/54 |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 500W, 37V, UNIDIRECTIONAL, TVS | TVS DIODE 30VWM 50.82VC DO204AC | TVS DIODE 30VWM 50.82VC DO204AC | TVS DIODE 30VWM 53.5VC DO204AC |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
