SA43-11SRWA
lmages are for reference only.SA43-11SRWA
DISPLAY 7SEG 0.43" SGL RED 14DIP
Datasheet14-DIP (0.300", 7.62mm)
55,739 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.748" H x 0.496" W x 0.310" D (19.00mm x 12.60mm x 7.87mm) 14-DIP (0.300", 7.62mm)
SA43-11SRWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.748" H x 0.496" W x 0.310" D (19.00mm x 12.60mm x 7.87mm) |
| Digit/Alpha Size | 0.43" (10.92mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Millicandela Rating | 42mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | SA43-11 |
| Display Format | - |
| Product Attribute |  |
 |
 |
|

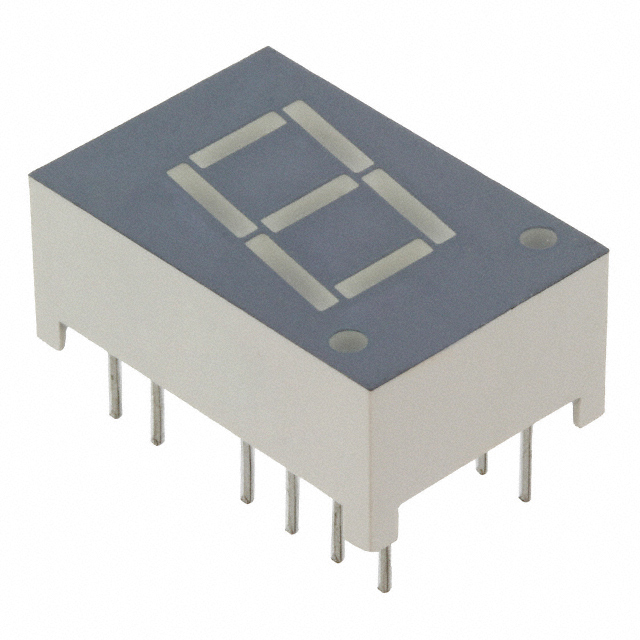

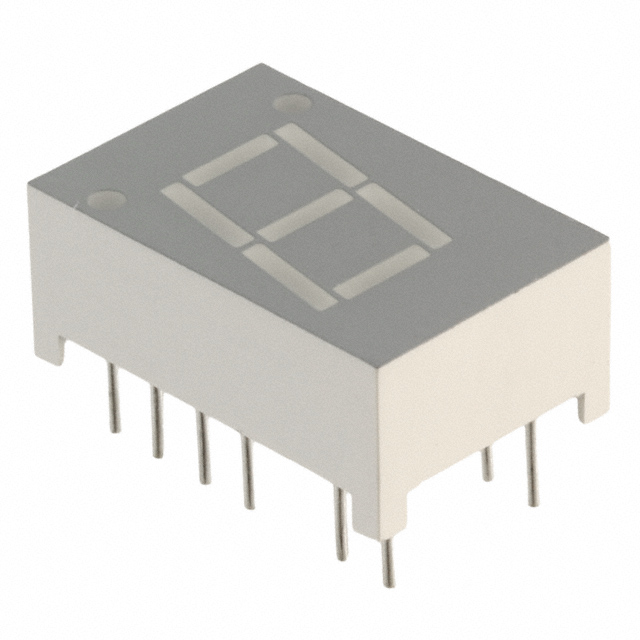

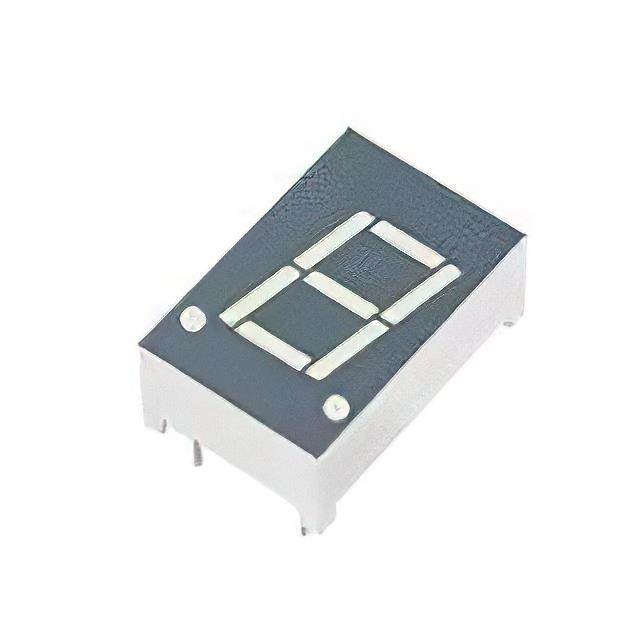

| Part Number | SA43-11SURKWA | SA43-11EWA | SA43-11GWA | SA43-11YWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | .43" RED LED DISPLAY | DISPLAY 7SEG 0.43" SGL RED 14DIP | DISPLAY 7SEG 0.43" SGL GRN 14DIP | DISPLAY 7SEG 0.43" SGL YLW 14DIP |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Tube | Tube |
