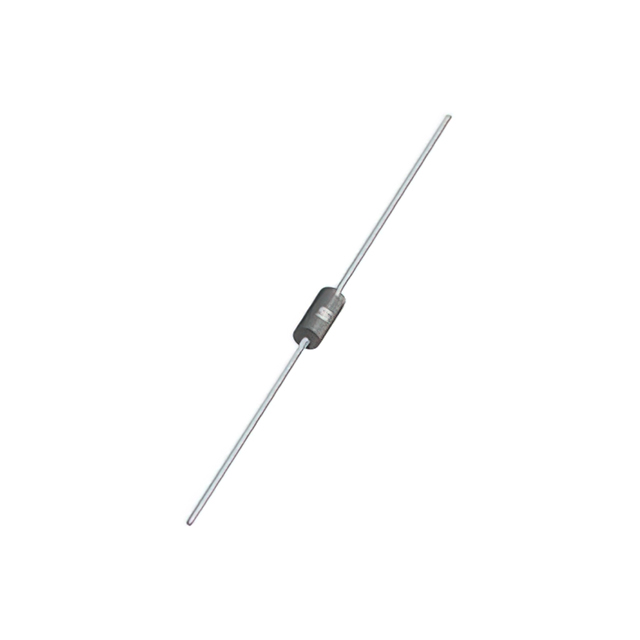

SA43C
lmages are for reference only.SA43C
500W, 53.1V, 10%, BIDIRECTIONAL,
DatasheetDO-204AC, DO-15, Axial
94,456 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
76.7V Clamp 6.8A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
SA43C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 43V |
| Voltage - Breakdown (Min) | 47.8V |
| Voltage - Clamping (Max) @ Ipp | 76.7V |
| Current - Peak Pulse (10/1000µs) | 6.8A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | SA43 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
|

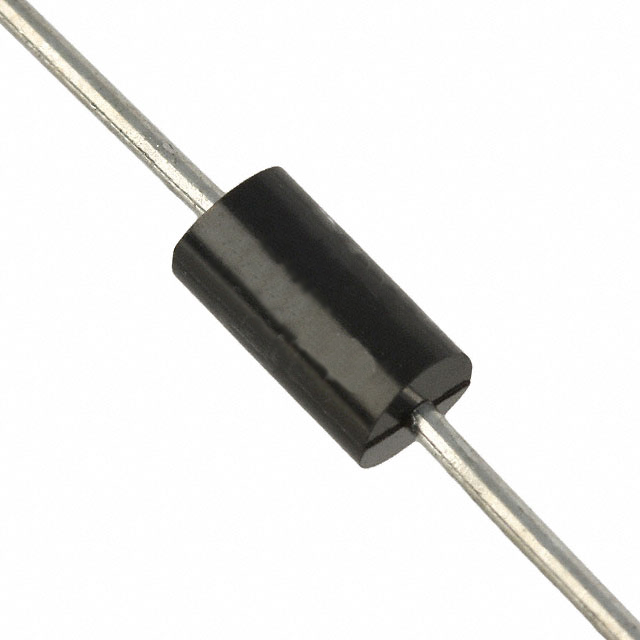

| Part Number | SA43 | SA43 | SA43-B | SA43-E3/54 |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TVS DIODE 43VWM 72.87VC DO204AC | 500W, 53.1V, 10%, UNIDIRECTIONAL | TVS DIODE 43VWM 69.4VC DO204AC | TVS DIODE 43VWM 76.7VC DO204AC |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
