SAJ35XXPP0N49SDTFAQ
lmages are for reference only.SAJ35XXPP0N49SDTFAQ
SWITCH SNAP ACTION SPDT 5A 125V
Datasheet-
67,874 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPDT Chassis Mount
SAJ35XXPP0N49SDTFAQ
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | SAJ3 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | SAJ35X |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 5A (AC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | - |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 5,000,000 Cycles |
| Features | - |
| Operating Force | 50gf |
| Release Force | 5.000gf |
| Operating Position | 0.579" (14.7mm) |
| Pretravel | 0.047" (1.2mm) |
| Differential Travel | 0.016" (0.4mm) |
| Overtravel | 0.039" (1.0mm) |
| Operating Temperature | -40°C ~ 85°C |
| Product Attribute |  |
 |
 |
 |

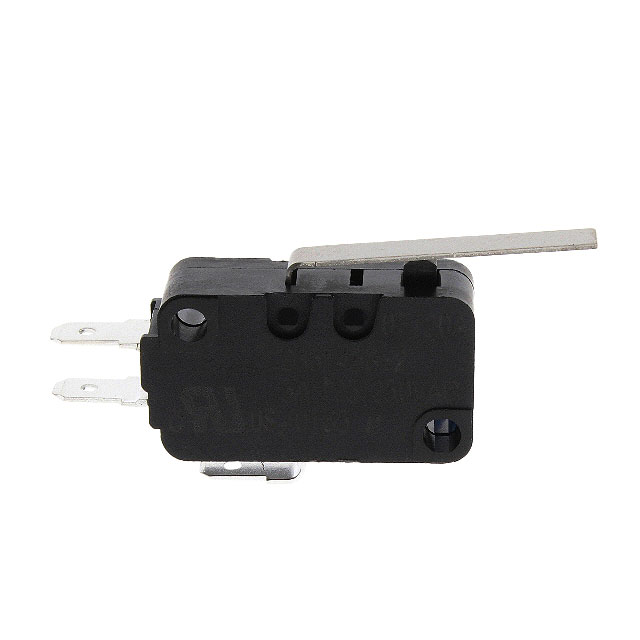

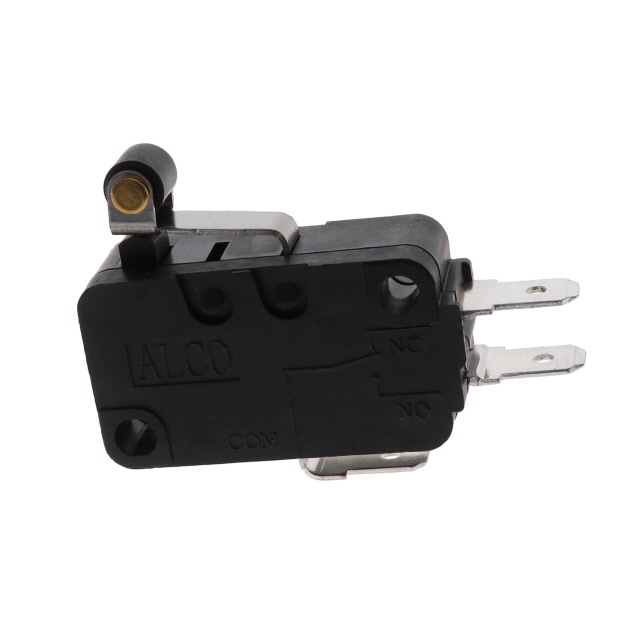

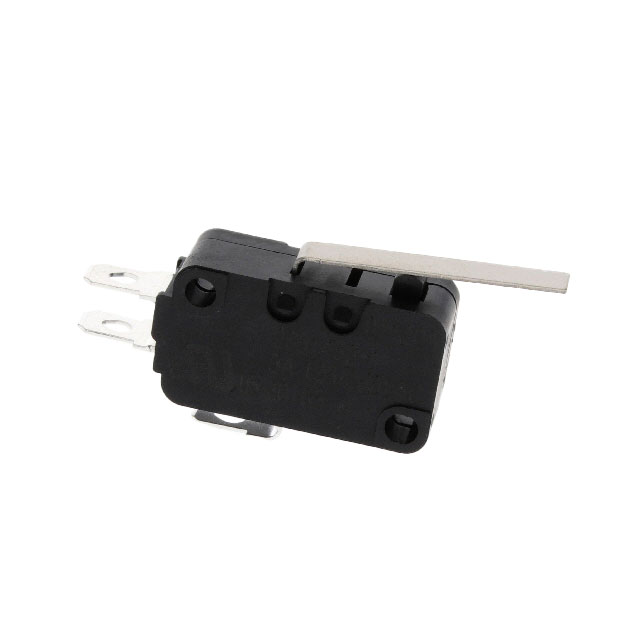

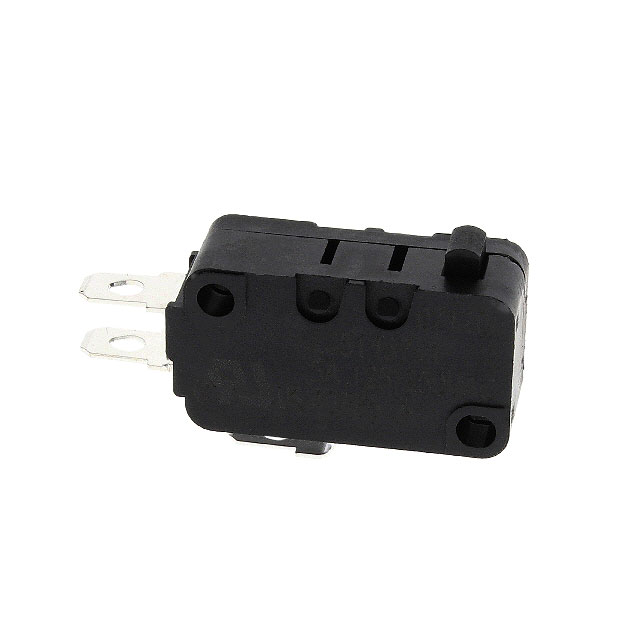

| Part Number | SAJ35XXPP0N49SDTSEQ | SAJ35XXHL0N49SDTFAQ | SAJ35XXHL0N49SDTSEQ | SAJ35XXSRLN49SDTFAQ |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SNAP ACTION SPDT 5A 125V | SWITCH SNAP ACTION SPDT 5A 125V | SWITCH SNAP ACTION SPDT 5A 125V | SWITCH SNAP ACTION SPDT 5A 125V |
| Series | SAJ3 | SAJ3 | SAJ3 | SAJ3 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
