SAJ405XHL0N30SNCSLQ
lmages are for reference only.SAJ405XHL0N30SNCSLQ
SWITCH SNAP ACT SPST-NC 0.5A 30V
Datasheet-
75,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NC Through Hole, Right Angle
SAJ405XHL0N30SNCSLQ
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | SAJ4 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | SAJ405 |
| Circuit | SPST-NC |
| Switch Function | On-Mom |
| Current Rating (Amps) | 500mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 30 V |
| Actuator Type | Lever, Straight |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Features | - |
| Operating Force | 50gf |
| Release Force | 3.000gf |
| Operating Position | 0.264" (6.7mm) |
| Pretravel | 0.071" (1.8mm) |
| Differential Travel | 0.028" (0.7mm) |
| Overtravel | 0.011" (0.3mm) |
| Operating Temperature | -40°C ~ 85°C |
| Product Attribute |  |
 |
 |
 |

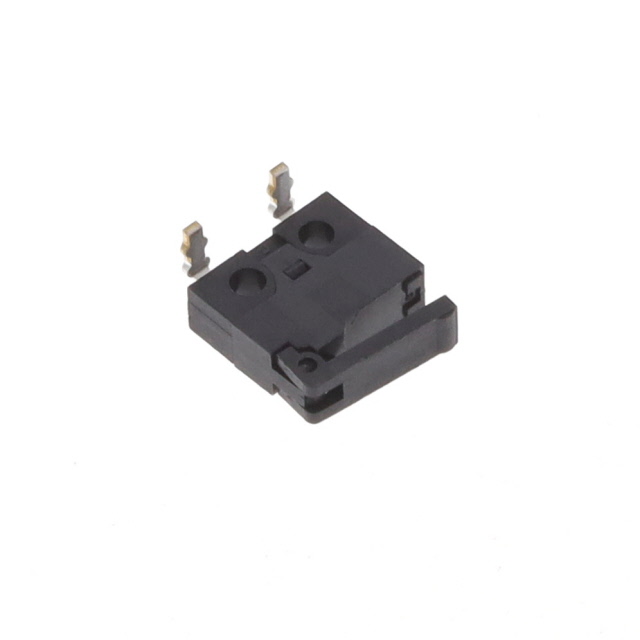

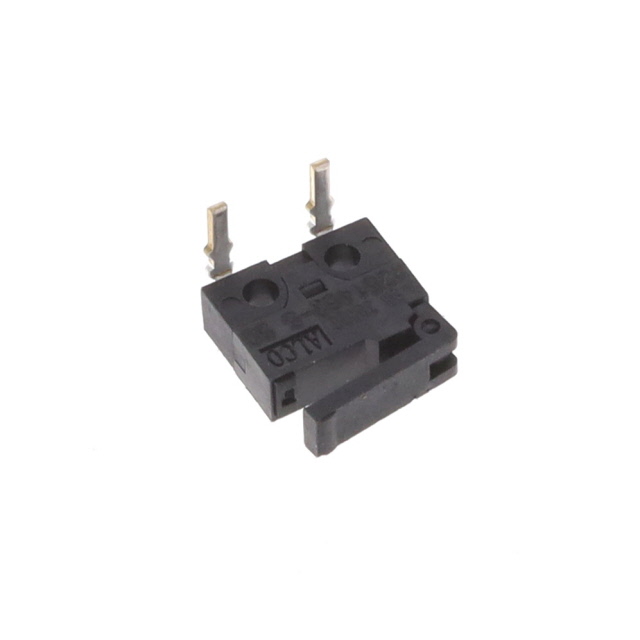

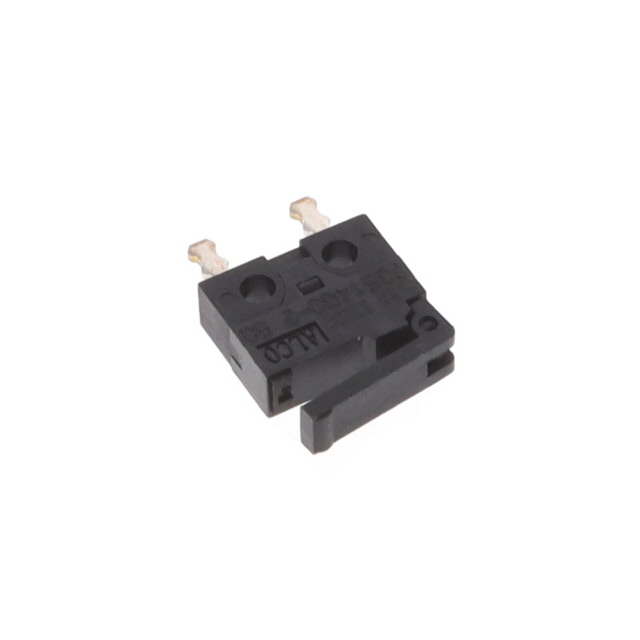

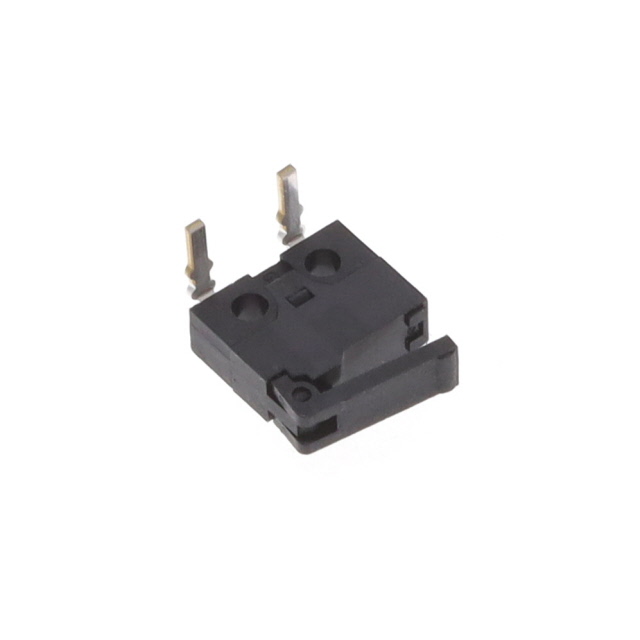

| Part Number | SAJ405XHL0N30SNCLLQ | SAJ405XHL0N30SNCLRQ | SAJ405XHL0N30SNCSRQ | SAJ405XHL0N30SNCUPQ |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SNAP ACT SPST-NC 0.5A 30V | SWITCH SNAP ACT SPST-NC 0.5A 30V | SWITCH SNAP ACT SPST-NC 0.5A 30V | SWITCH SNAP ACT SPST-NC 0.5A 30V |
| Series | SAJ4 | SAJ4 | SAJ4 | SAJ4 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
