SBA320AFC-AU_R1_000A1

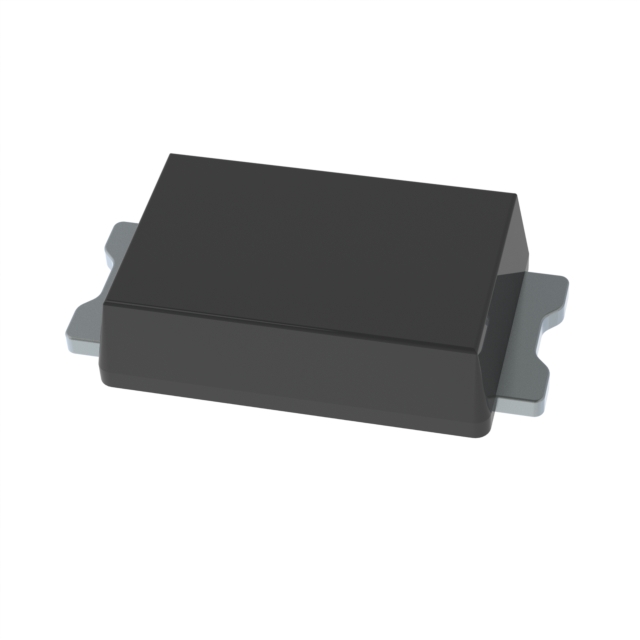

lmages are for reference only.SBA320AFC-AU_R1_000A1
DIODE SCHOTTKY 20V 3A SMAF-C
DatasheetDO-221AC, SMA Flat Leads
54,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 20 V 3A Surface Mount SMAF-C
SBA320AFC-AU_R1_000A1
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 440 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAF-C |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | SBA320 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | SBA320AFC_R1_00001 | SBA320AH-AU_R1_000A1 | SBA320AH_R1_00001 | SBA320AL_R1_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT EXTREME LOW VF SCH | EXTREME LOW VF SCHOTTKY RECTIFIE | EXTREME LOW VF SCHOTTKY RECTIFIE | EXTREME LOW VF SCHOTTKY RECTIFIE |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
