SBJ1845-3G

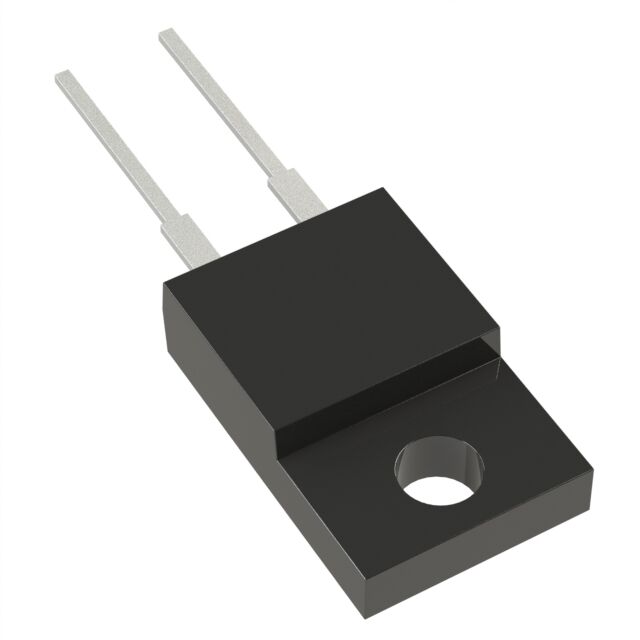

lmages are for reference only.SBJ1845-3G
DIODE SCHOTTKY 45V 18A ITO220AC
DatasheetTO-220-2 Full Pack, Isolated Tab
10,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 45 V 18A Through Hole ITO-220AC
SBJ1845-3G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 18A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 18 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SBJ100-06J | SBJ1845 | VS-HFA25PB60-N3 | RS07K-GS18 |
| Manufacturer | onsemi | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RECTIFIER DIODE, SCHOTTKY | DIODE SCHOTTKY 45V 18A TO220AB | DIODE GP 600V 25A TO247AC | DIODE GP 800V 500MA DO219AB |
| Series | * | - | HEXFRED® | - |
| Packaging | Bulk | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
