SBR433M420S022

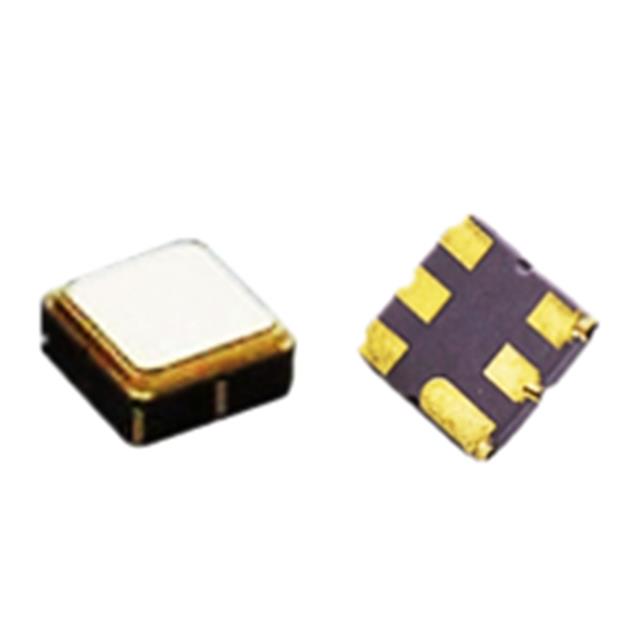

lmages are for reference only.SBR433M420S022
433.42MHz SAW Res. +/-75KHz 6P 3
Datasheet6-SMD, No Lead
15,173 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
433.42 MHz SAW Resonator 50 Ohms -40°C ~ 85°C Surface Mount
SBR433M420S022
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | NextGen Components |
| Series | SBR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | SAW |
| Frequency | 433.42 MHz |
| Frequency Stability | - |
| Frequency Tolerance | ±75kHz |
| Features | - |
| Capacitance | - |
| Impedance | 50 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SBR418M000S022 | SBR433M920S021 | SBR433M920S022 | SBR433M920S023 |
| Manufacturer | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 418MHz SAW Res. +/-75KHz 6P 3838 | 433.92MHz SAW Res. +/-50KHz 6P 3 | 433.92MHz SAW Res. +/-75KHz 6P 3 | 433.92MHz SAW Res. +/-100KHz 6P |
| Series | SBR | SBR | SBR | SBR |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
