SBT-10X-UV-A120-AH380-22

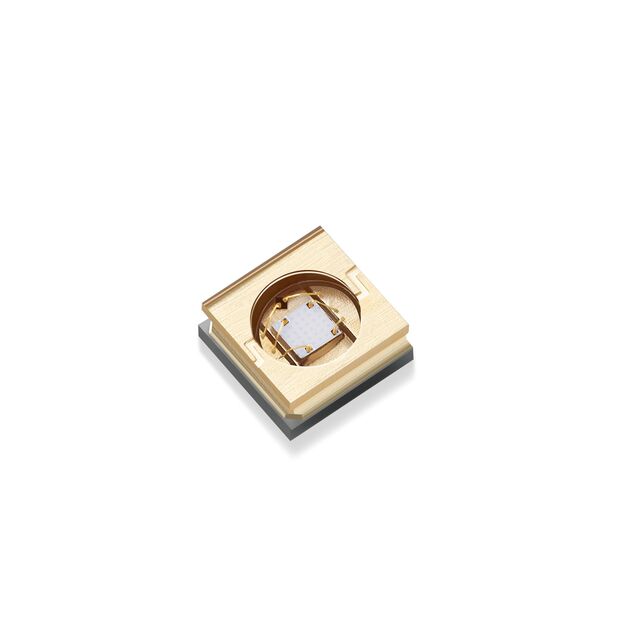

lmages are for reference only.SBT-10X-UV-A120-AH380-22
SBT-10X-UV SURFACE MOUNT LED
Datasheet1414 (3535 Metric)
28,758 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ultraviolet (UV) Emitter 385nm (380nm ~ 390nm) 3.4V 4A 120° 1414 (3535 Metric)
SBT-10X-UV-A120-AH380-22
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Luminus Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 4A |
| Radiant Intensity (Ie) Min @ If | - |
| Wavelength | 385nm (380nm ~ 390nm) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Viewing Angle | 120° |
| Orientation | Top View |
| Operating Temperature | 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SBT-10X-UV-A120-AH390-22 | SBT-10X-UV-A120-AH400-22 | HR5P-N3FA-00000 | EAUVA3020EF5 |
| Manufacturer | Luminus Devices Inc. | Luminus Devices Inc. | Broadcom Limited | Everlight Electronics Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SBT-10X-UV SURFACE MOUNT LED | SBT-10X-UV SURFACE MOUNT LED | IR LAMP,5MM, 880NM,50DEG | EMITTER |
| Series | - | - | * | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) |
