SC08-11SRWA
lmages are for reference only.SC08-11SRWA
DISPLAY 7-SEG 0.8" SGL RED 18DIP
Datasheet16-DIP (0.600", 15.24mm), 13 Leads
66,325 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads
SC08-11SRWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) |
| Digit/Alpha Size | 0.80" (20.32mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Millicandela Rating | 36mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 16-DIP (0.600", 15.24mm), 13 Leads |
| Base Product Number | SC08-11 |
| Display Format | - |
| Product Attribute |  |
 |
|
|

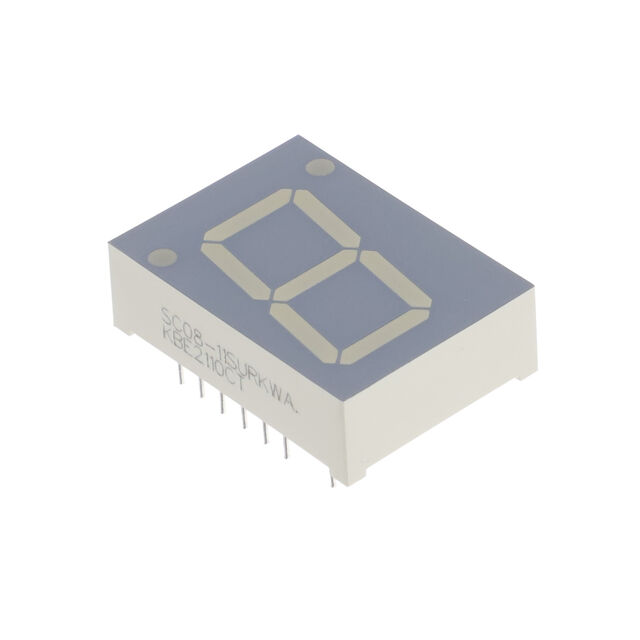

| Part Number | SC08-11SURKWA | SC08-11SYKWA | SC08-11CGKWA | SC08-11EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7-SEG 0.8" SGL RED 16DIP | DISPLAY 7-SEG 0.8" SGL YLW 16DIP | DISPLAY 7SEG 0.8" SGL GRN 16DIP | DISPLAY 7-SEG 0.8" SGL RED 18DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
