SC1405DITSTRT
lmages are for reference only.SC1405DITSTRT
IC GATE DRVR HALF-BRIDGE 14TSSOP
Datasheet14-TSSOP (0.173", 4.40mm Width)
99,156 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 14-TSSOP
SC1405DITSTRT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Semtech Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.6V ~ 6V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 30 V |
| Rise / Fall Time (Typ) | 14ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | SC1405 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SC1205CSTRT | SC1214TSTRT | SC1301AISKTRT | SC1301AISTRT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||

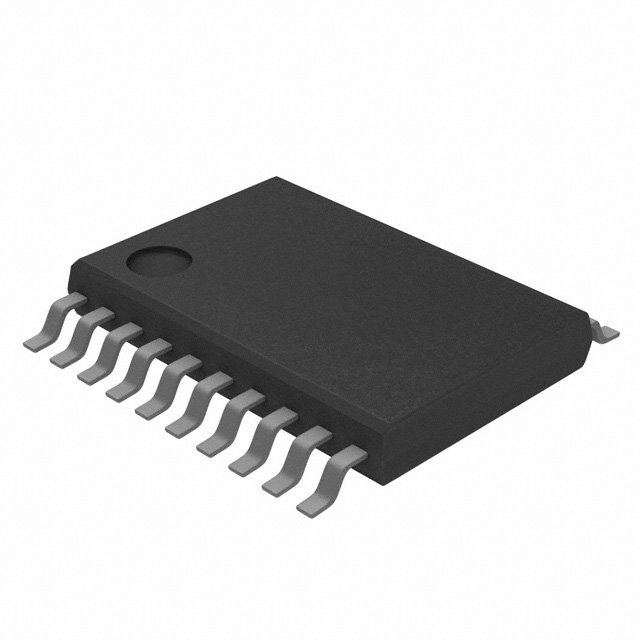

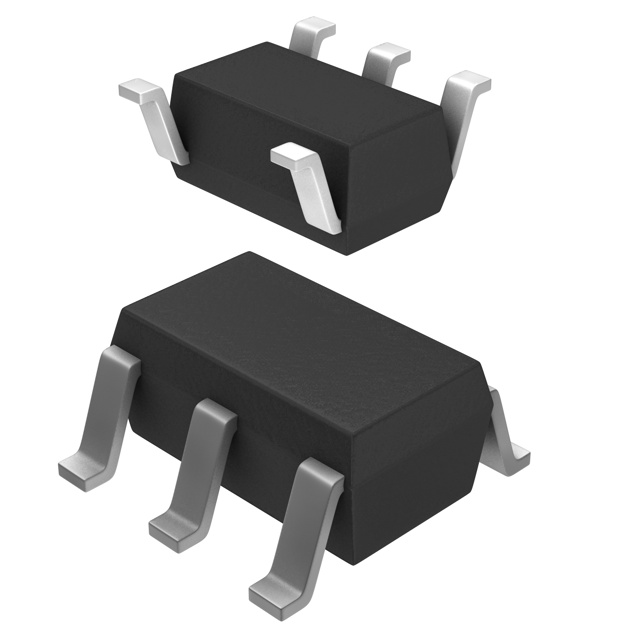

| Description | IC GATE DRVR HALF-BRIDGE 8SO | IC GATE DRVR HALF-BRIDGE 20TSSOP | IC GATE DRVR LOW-SIDE SOT23-5 | IC GATE DRVR LOW-SIDE SOT23-5 |
| Series | - | Combi-Sense® | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
