Product CatalogPart Number
SC2511-R47MHF
Manufacturer
ITG Electronics, Inc.Description
0.47UH, 20%, 2.6mOhm, 28A Max.
Datasheet
DatasheetPackage
-
In Stock
22,359 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SC2511-R47MHF
SC2511-R47MHF
lmages are for reference only.Payment Methods
Delivery Services
0.47 µH Inductor 28 A 2.6mOhm
Quick Inquiry
SC2511-R47MHF
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SC2511 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 0.47 µH |
| Tolerance | - |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | - |
| Shielding | - |
| DC Resistance (DCR) | 2.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | - |
| Supplier Device Package | - |
| Size / Dimension | 0.291" L x 0.268" W (7.40mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

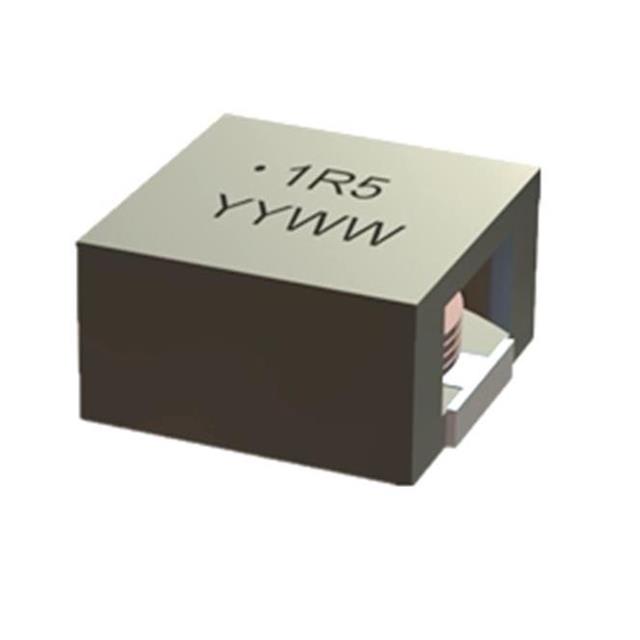

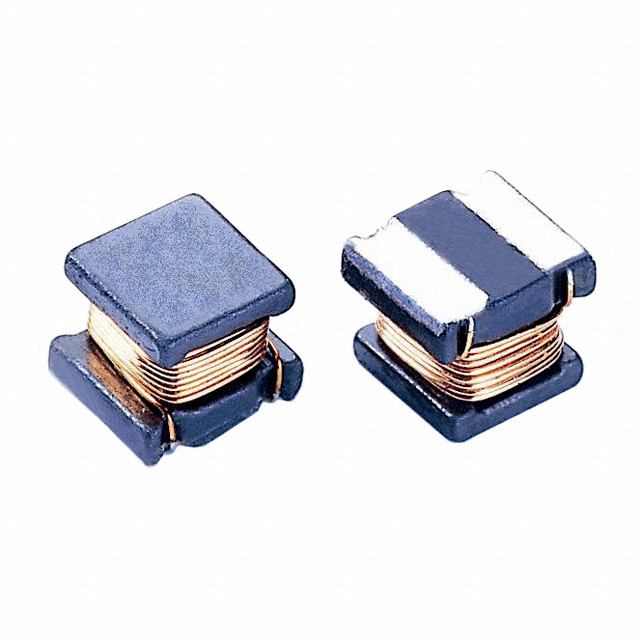

| Part Number | SC2511-R10MHF | SC2220-1R0 | SC2220-470 | SC2220-R10 |
| Manufacturer | ITG Electronics, Inc. | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 0.1UH, 20%, 1MOHM, 39AMP MAX. SM | FIXED IND 1UH 4.4A 26.6 MOHM SMD | FIXED IND 47UH 760MA 630MOHM SMD | FIXED IND 100NH 7.8A 9.8MOHM SMD |
| Series | ITG Electronics, Inc. | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
