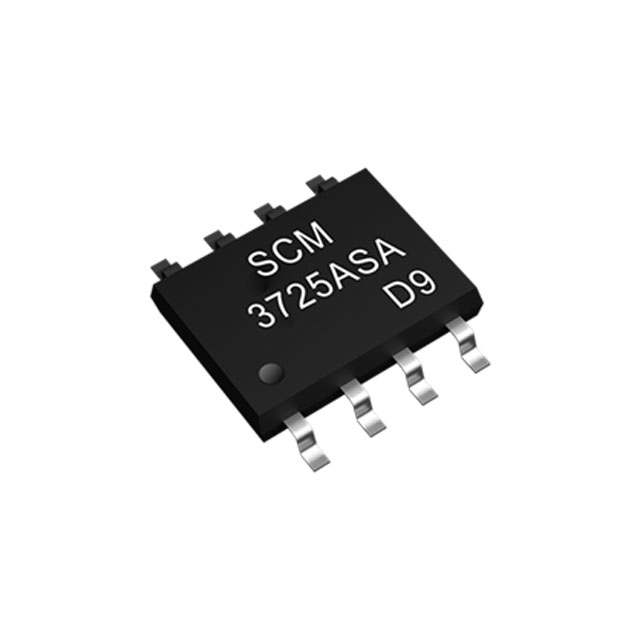

SCM3725ASA
lmages are for reference only.SCM3725ASA
GENERAL PURPOSE DIGITAL ISOLATOR
Datasheet8-SOIC (0.154", 3.90mm Width)
18,796 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 3000Vrms 2 Channel 10Mbps 75kV/µs (Typ) CMTI 8-SOIC (0.154", 3.90mm Width)
SCM3725ASA
| Category | Isolators - Digital Isolators - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 75kV/µs (Typ) |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 12.5ns, 12.5ns |
| Pulse Width Distortion (Max) | 0.8ns |
| Rise / Fall Time (Typ) | 1.5ns, 1.5ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

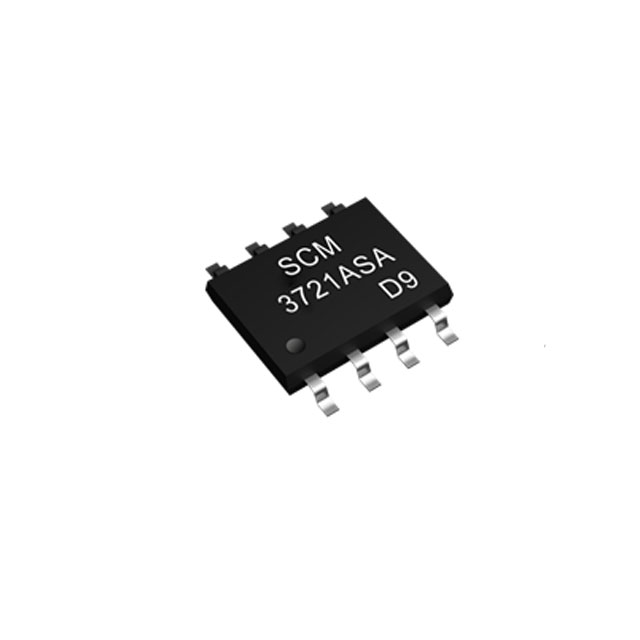

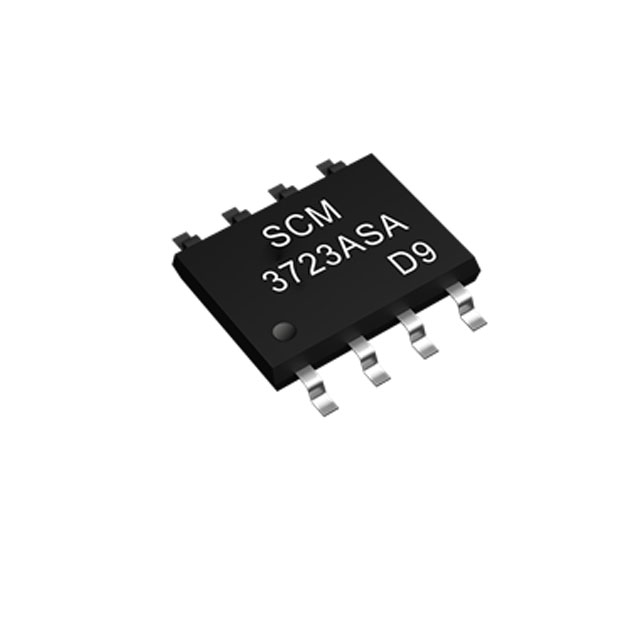

| Part Number | SCM3721ASA | SCM3723ASA | SCM3728ASA | IL 712-3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | NVE Corp/Isolation Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR | DGTL ISO 2500VRMS 2CH GP 8SOIC |
| Series | IsoLoop® | |||
| Packaging | - | - | - | Tube |
