Product CatalogPart Number
SCT3120ALGC11
Manufacturer
Rohm SemiconductorDescription
SICFET N-CH 650V 21A TO247N
Datasheet
DatasheetPackage
TO-247-3
In Stock
43,118 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SCT3120ALGC11
SCT3120ALGC11
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 21A (Tc) 103W (Tc) Through Hole TO-247N
Quick Inquiry
SCT3120ALGC11
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Rds On (Max) @ Id, Vgs | 156mOhm @ 6.7A, 18V |
| Vgs(th) (Max) @ Id | 5.6V @ 3.33mA |
| Vgs (Max) | +22V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 500 V |
| FET Feature | - |
| Power Dissipation (Max) | 103W (Tc) |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247N |
| Package / Case | TO-247-3 |
| Base Product Number | SCT3120 |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 18 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | SCT3120ALHRC11 | SCT3120AW7TL | SCT011H75G3AG | SCT011HU75G3AG |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SICFET N-CH 650V 21A TO247N | SICFET N-CH 650V 21A TO263-7 | MOSFET 750 V 110A H2PAK7 | AUTOMOTIVE-GRADE SILICON CARBIDE |
| Series | - | - | * | * |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SCT3105KLGC11
Rohm Semiconductor
SCT3105KLHRC11
Rohm Semiconductor
SCT3105KRC14
Rohm Semiconductor
SCT3105KRC15
Rohm Semiconductor

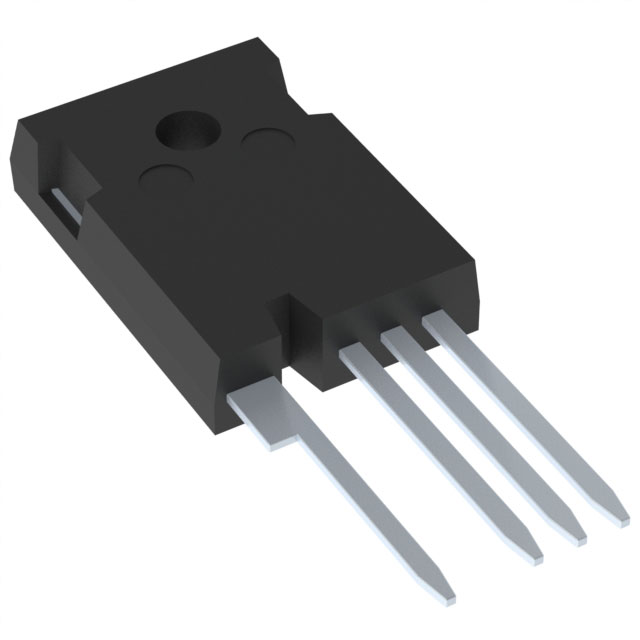

SCT3105KRHRC15
Rohm Semiconductor
SCT3105KW7TL
Rohm Semiconductor

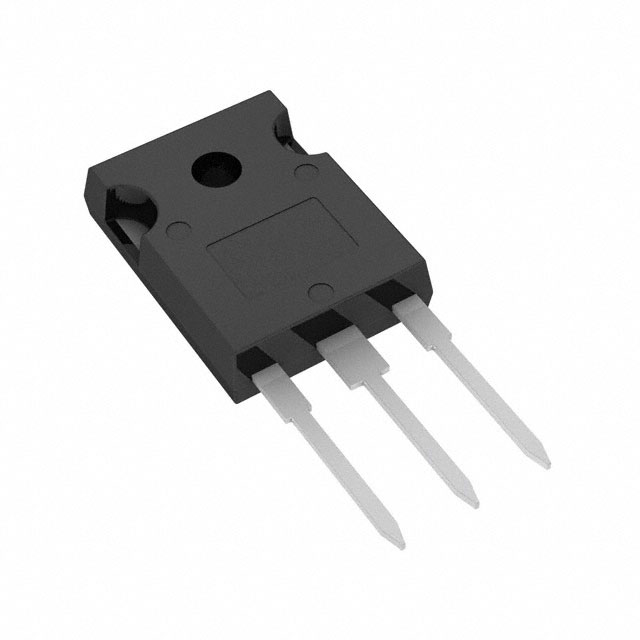

SCT3120ALHRC11
Rohm Semiconductor

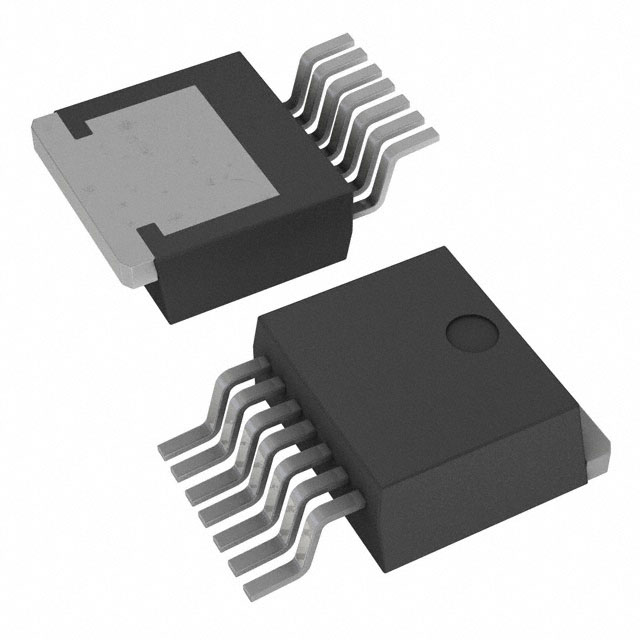

SCT3120AW7TL
Rohm Semiconductor
SCT3160KLGC11
Rohm Semiconductor
SCT3160KLHRC11
Rohm Semiconductor

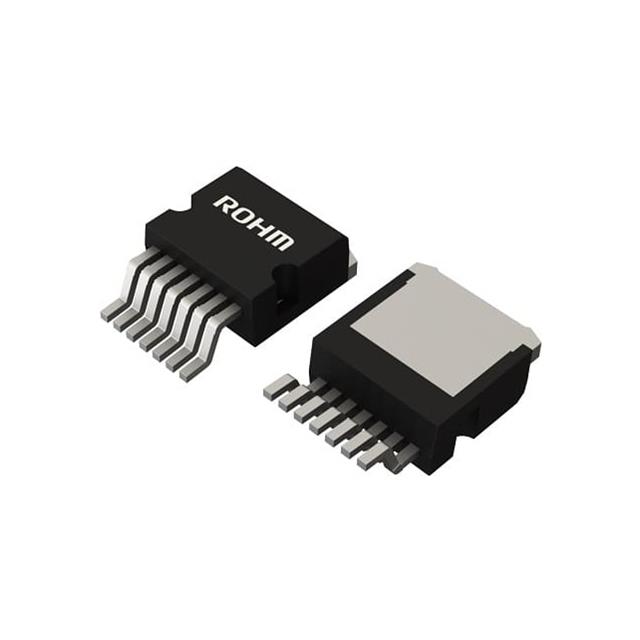

SCT3160KW7HRTL
Rohm Semiconductor
SCT3160KW7TL
Rohm Semiconductor

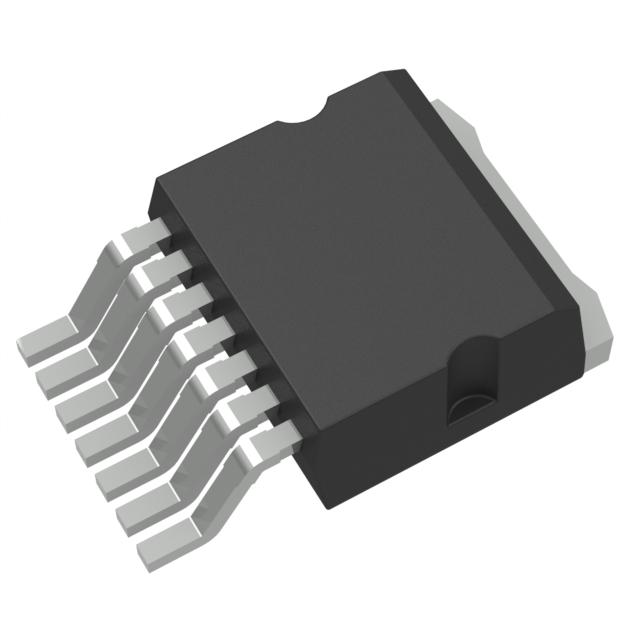

SCT3160KWAHRTL
