SD101C-T
lmages are for reference only.SD101C-T
DIODE SCHOTTKY 40V 15MA DO35
DatasheetDO-204AH, DO-35, Axial
96,842 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 40 V 15mA Through Hole DO-35
SD101C-T
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 15mA |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 15 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns |
| Current - Reverse Leakage @ Vr | 200 nA @ 30 V |
| Capacitance @ Vr, F | 2.2pF @ 0V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | SD101C |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

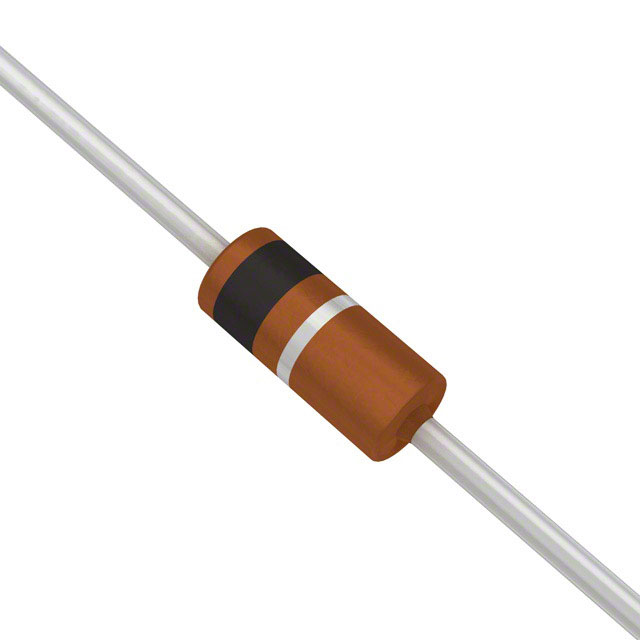

| Part Number | SD101C-TAP | SD101C-TP | SD101C-TR | SD101A-A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 40V 30MA DO35 | DIODE SCHOTTKY 40V 15MA DO35 | DIODE SCHOTTKY 40V 30MA DO35 | DIODE SCHOTTKY 60V 15MA DO35 |
| Series | - | - | - | - |
| Packaging | Tape & Box (TB) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
