SD12-1R2-R

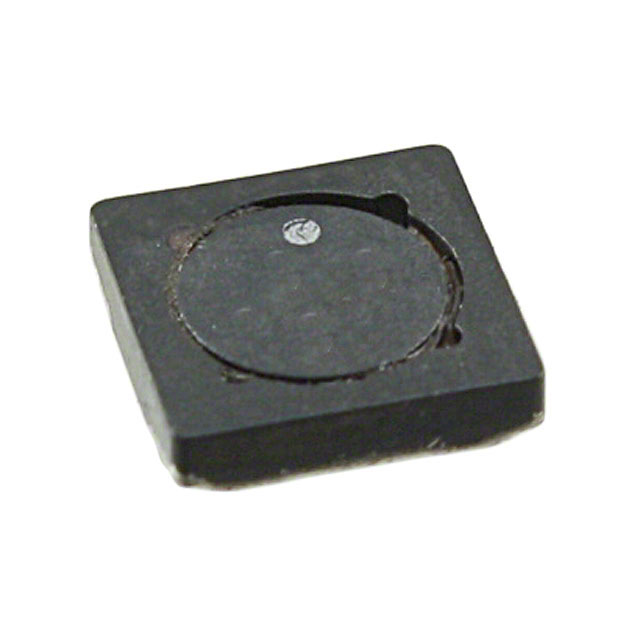

lmages are for reference only.SD12-1R2-R
FIXED IND 1.2UH 2.62A 36.6 MOHM
DatasheetNonstandard
33,962 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µH Shielded Drum Core, Wirewound Inductor 2.62 A 36.6mOhm Nonstandard
SD12-1R2-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | SD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.62 A |
| Current - Saturation (Isat) | 2.45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 36.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | SD12-1R5-R | SD12-100-R | SD12-101-R | SD12-102-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 1.5UH 2.19A 52.1 MOHM | FIXED IND 10UH 938MA 284.4 MOHM | FIXED IND 100UH 308MA 2.64OHM SM | FIXED IND 1MH 121MA 17.2 OHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
