SD14-470-R

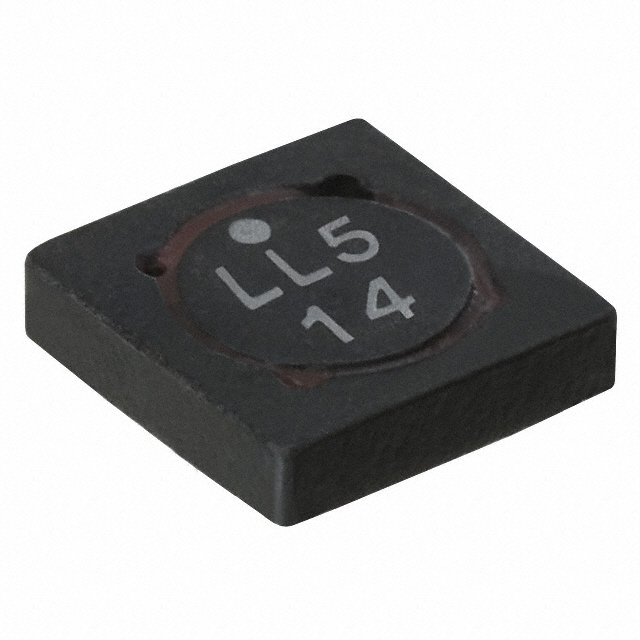

lmages are for reference only.SD14-470-R
FIXED IND 47UH 525MA 905.5 MOHM
DatasheetNonstandard
23,079 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µH Shielded Drum Core, Wirewound Inductor 525 mA 905.5mOhm Nonstandard
SD14-470-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | SD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 525 mA |
| Current - Saturation (Isat) | 538mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 905.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | SD14-471-R | SD14-471-R | SD14-100-R | SD14-101-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 470UH 173MA 8.34OHM SM | FIXED IND 470UH 173MA 8.34OHM SM | FIXED IND 10UH 1.1A 205.8MOHM SM | FIXED IND 100UH 386MA 1.68OHM SM |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
