SDCL0603Q0N7CT02B03

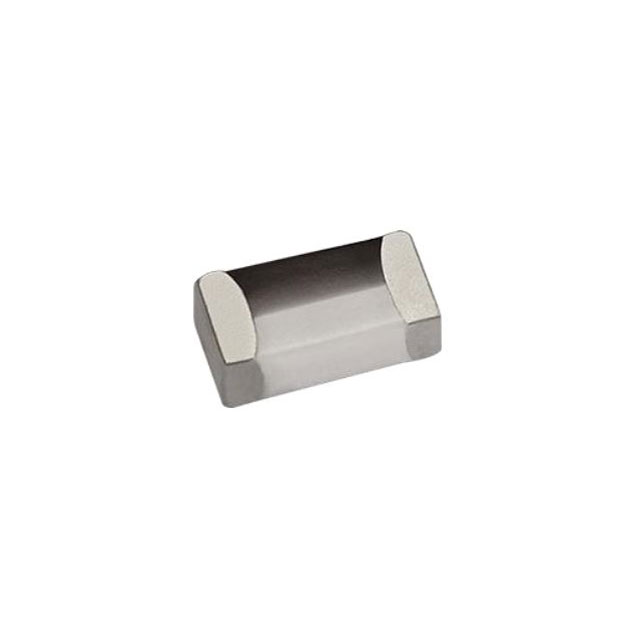

lmages are for reference only.SDCL0603Q0N7CT02B03
FIXED IND 0.7NH 800MA 60MOHM SMD
Datasheet0201 (0603 Metric)
75,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.7 nH Unshielded Multilayer Inductor 800 mA 60mOhm Max 0201 (0603 Metric)
SDCL0603Q0N7CT02B03
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | SDCL0603Q-02-B |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 0.7 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 60mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 20GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

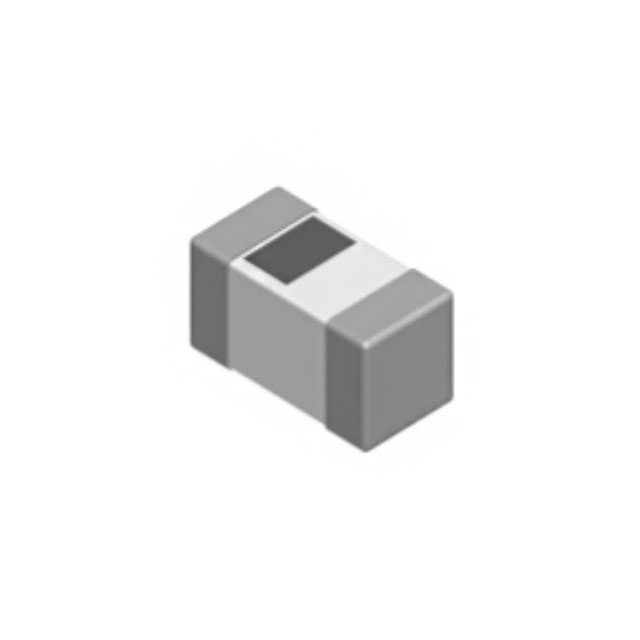

| Part Number | SDCL0603Q0N6BT02B03 | SDCL0603Q0N6CT02B03 | SDCL0603Q0N7BT02B03 | SDCL0603Q0N8BT02B03 |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 0.6NH 850MA 60MOHM SMD | FIXED IND 0.6NH 850MA 60MOHM SMD | FIXED IND 0.7NH 800MA 60MOHM SMD | FIXED IND 0.8NH 800MA 70MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
