SDR433M860S012
lmages are for reference only.SDR433M860S012
433.86MHz SAW Res. +/-75KHz 6P 3
Datasheet6-SMD, No Lead
43,872 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
433.86 MHz SAW Resonator 50 Ohms -40°C ~ 85°C Surface Mount
SDR433M860S012
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | NextGen Components |
| Series | SDR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | SAW |
| Frequency | 433.86 MHz |
| Frequency Stability | - |
| Frequency Tolerance | ±75kHz |
| Features | - |
| Capacitance | - |
| Impedance | 50 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height | 0.049" (1.25mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

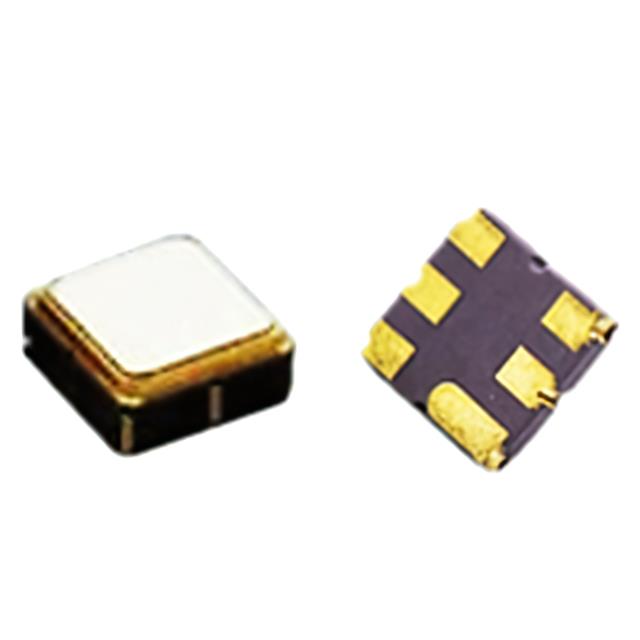

| Part Number | SDR403M550S012 | SDR418M000S012 | SDR433M420S012 | SDR433M920S001 |
| Manufacturer | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 403.55MHz SAW Res. +/-75KHz 6P 3 | 418MHz SAW Res. +/-75KHz 6P 3030 | 433.42MHz SAW Res. +/-75KHz 6P 3 | 433.92MHZ SAW RESONATOR 6 pad 30 |
| Series | SDR | SDR | SDR | SDR |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
