SDT-S-124DMR,000
lmages are for reference only.SDT-S-124DMR,000
RELAY GEN PURPOSE SPST 10A 24V
Datasheet-
43,427 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
SDT-S-124DMR,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | SDT-R, OEG |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W |
| Coil Current | 22.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class E |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, TUV, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.07 kOhms |
| Base Product Number | SDT-S-1 |
| Product Attribute |  |
|
 |
|
| Part Number | SDT-S-124DMR,601 | SDT-S-103DMR,000 | SDT-S-103LMR,000 | SDT-S-105DMR,601 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

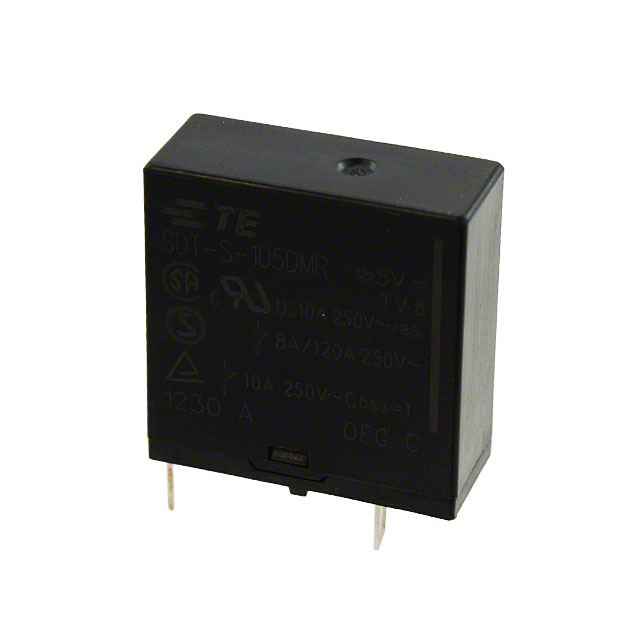

| Description | RELAY GEN PURP | RELAY GEN PURPOSE SPST 10A 3V | RELAY GEN PURPOSE SPST 5A 3V | RELAY GEN PURPOSE SPST 10A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tube | Tube | Tray |
