SE80PWTLJHM3/I

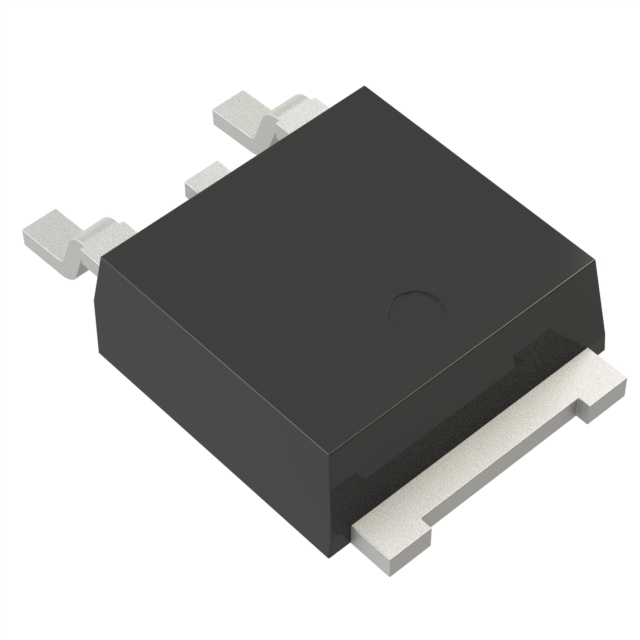

lmages are for reference only.Payment Methods
Delivery Services
Diode 600 V 8A Surface Mount SlimDPAK
SE80PWTLJHM3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 960 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 280 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Capacitance @ Vr, F | 70pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | SlimDPAK |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | SE80PWTLG-M3/I | SE80PWTLGHM3/I | SE80PWTLJ-M3/I | SE80PWB-M3/I |
| Manufacturer | Vishay | Vishay | Vishay | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | |||
| Description | 8A, 400V, STD RECT, SLIMDPAK 2L | 8A, 400V, STD RECT, SLIMDPAK 2L | 8A, 600V, STD RECT, SLIMDPAK 2L | DIODE GEN PURP 100V 8A SLIMDPAK |
| Series | - | - | - | eSMP® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
