SEH 20A 125V (G)
lmages are for reference only.Payment Methods
Delivery Services
20 A 125 V AC 100 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
SEH 20A 125V (G)
| Category | Circuit Protection - Fuses - |
| Manufacturer | Conquer |
| Series | SEH(G) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Request inventory verification |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 20 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 100 V |
| Response Time | - |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 100A AC, 300A DC |
| Melting I²t | 18.0 |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.398" L x 0.122" W x 0.122" H (10.10mm x 3.10mm x 3.10mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.0033 Ohms |
| Product Attribute |  |
 |
 |
 |

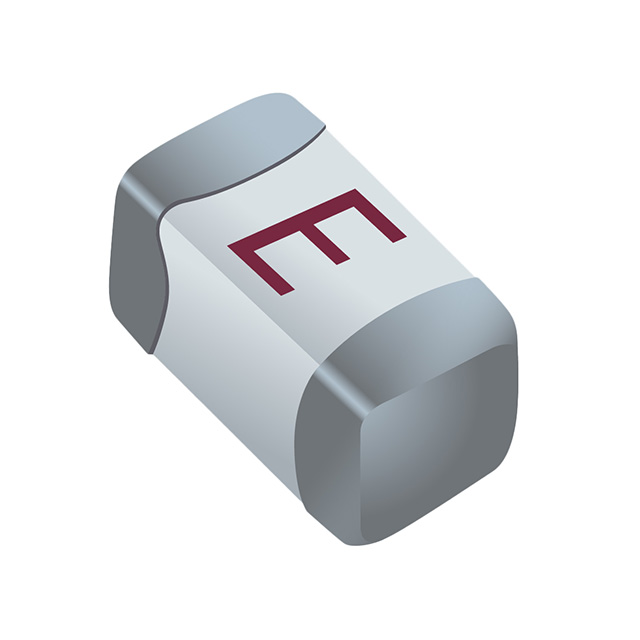

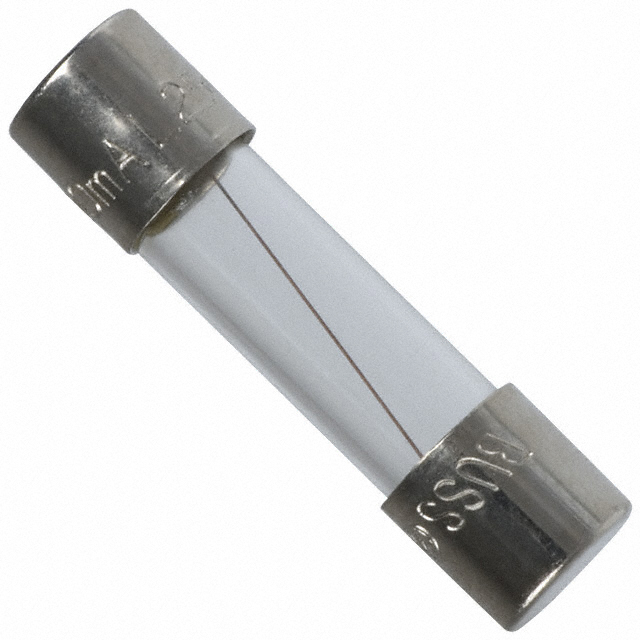

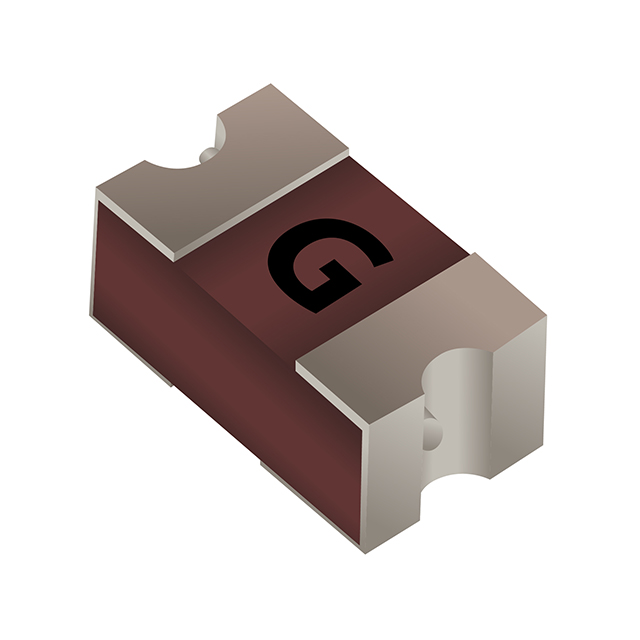

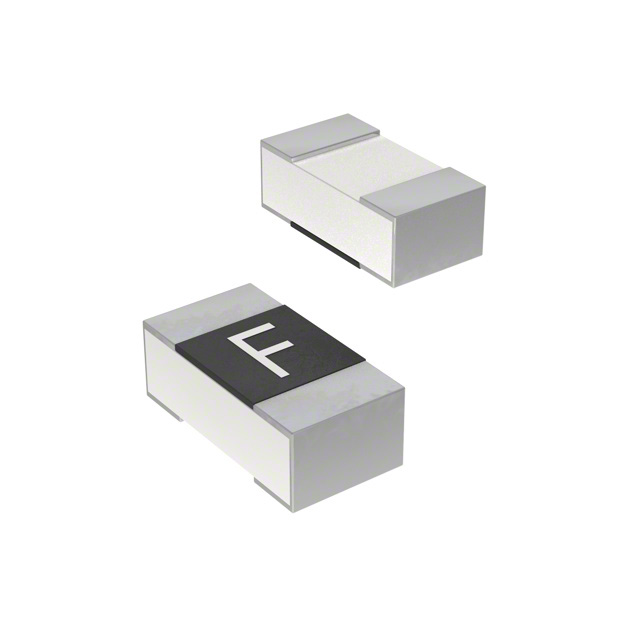

| Part Number | SF-0603SP700M-2 | SF-0402F125-2 | SF-1210S150W-2 | S506-125-R |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOARD MOUNT 7A 32VDC 0603 | FUSE BOARD MNT 1.25A 32VDC 0402 | FUSE BRDMT 1.5A 125VAC/65DC 1210 | FUSE GLASS 125MA 250VAC 5X20MM |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
