TVS DIODE 7VWM 9.2VC 1103/6DFN
Datasheet6-XFDFN Exposed Pad
76,627 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

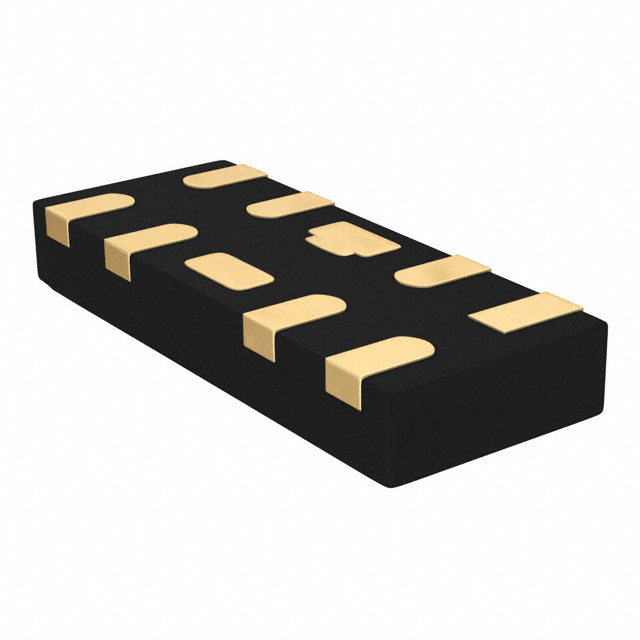

9.2V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 1103/6DFN (2.8x0.8)
SESD1103Q6UG-0020-090
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | SESD, SPA® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Breakdown (Min) | 9V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | HDMI |
| Capacitance @ Frequency | 0.2pF @ 3GHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | 1103/6DFN (2.8x0.8) |
| Base Product Number | - |
| Unidirectional Channels | 6 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 | 5KP36A-TP | SMA4F33A |
| Manufacturer | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 | TVS DIODE 36VWM 58.1VC R6 | TVS DIODE 33VWM 69.7VC SMAFLAT |
| Series | WeEn Semiconductors | Infineon Technologies | Micro Commercial Co | STMicroelectronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
