SF-1206S300W-2
lmages are for reference only.SF-1206S300W-2
FUSE BOARD MOUNT 3A 65VDC 1206
Datasheet1206 (3216 Metric), Concave
66,853 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 A AC 65 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric), Concave
SF-1206S300W-2
| Category | Circuit Protection - Fuses - |
| Manufacturer | Bourns Inc. |
| Series | SinglFuse™ SF-1206SxxxW |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 3 A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 65 V |
| Response Time | Slow Blow |
| Package / Case | 1206 (3216 Metric), Concave |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 1.9 |
| Approval Agency | UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm) |
| Base Product Number | SF-1206 |
| DC Cold Resistance | 0.022 Ohms |
| Product Attribute |  |
 |
 |
 |

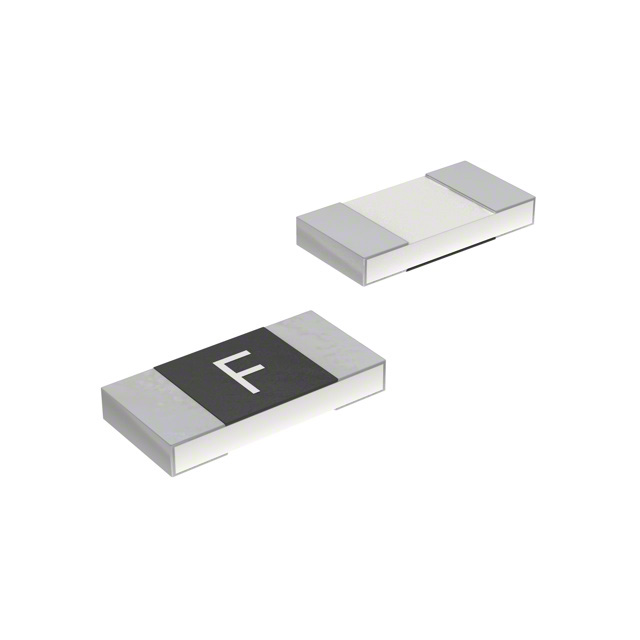

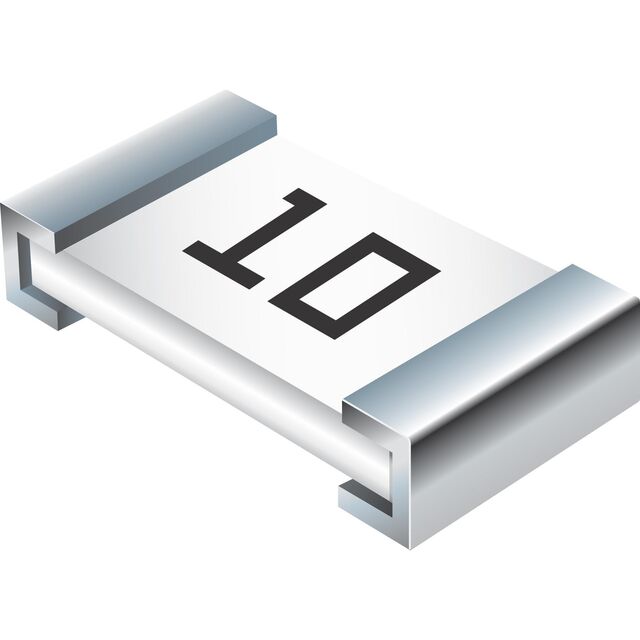

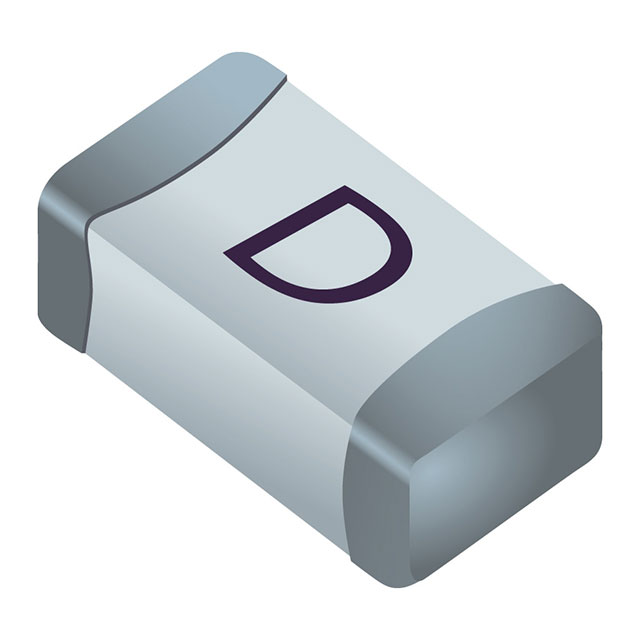

| Part Number | SF-1206S300-2 | SF-1206S300M-2 | SF-1206S080-2 | SF-1206S1000R-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOARD MOUNT 3A 32VDC 1206 | FUSE BOARD MOUNT 3A 32VDC 1206 | FUSE BOARD MNT 800MA 63VDC 1206 | FUSE BOARD MNT 10A 32VDC 1206 |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Digi-Reel® | Tape & Reel (TR)-->Cut Tape (CT) |
