SFAF1601G
lmages are for reference only.SFAF1601G
35NS, 16A, 50V, SUPER FAST RECOV
DatasheetTO-220-2 Full Pack
32,651 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 50 V 16A Through Hole ITO-220AC
SFAF1601G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 16A |
| Voltage - Forward (Vf) (Max) @ If | 975 mV @ 16 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
| Capacitance @ Vr, F | 130pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

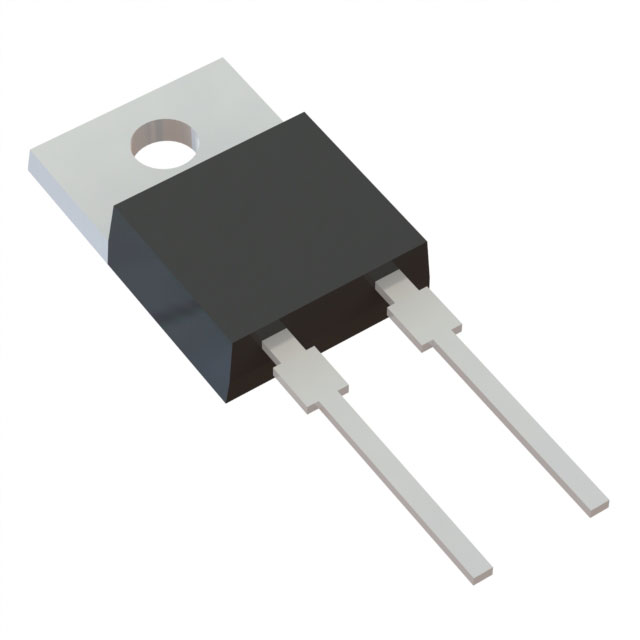

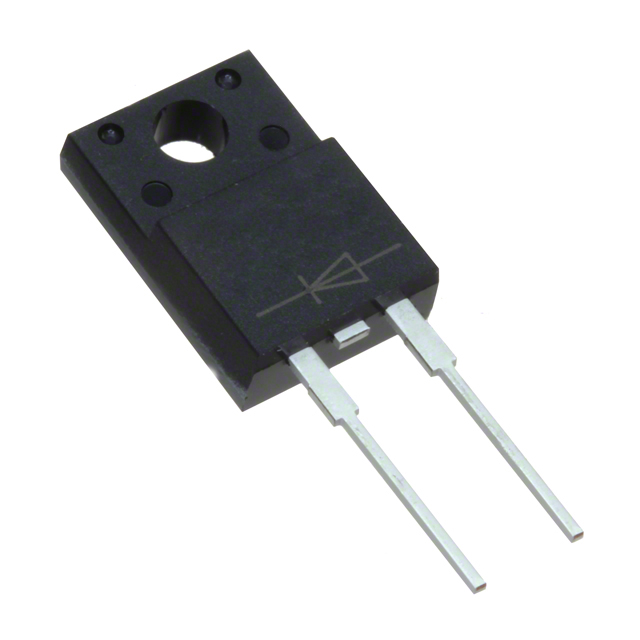

| Part Number | SFAF1601GH | SFAF1602G | SFAF1602G C0G | SFAF1602GH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | |||
| Description | 35NS, 16A, 50V, SUPER FAST RECOV | 35NS, 16A, 100V, SUPER FAST RECO | DIODE GEN PURP 100V 16A ITO220AC | 35NS, 16A, 100V, SUPER FAST RECO |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
