SFH628A-3X016
lmages are for reference only.SFH628A-3X016
OPTOISOLATOR 5.3KV TRANS 4DIP
Datasheet4-DIP (0.400", 10.16mm)
28,027 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 1 Channel 4-DIP
SFH628A-3X016
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 320% @ 1mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5.5µs |
| Rise / Fall Time (Typ) | 3.5µs, 5µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.400", 10.16mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | SFH628 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

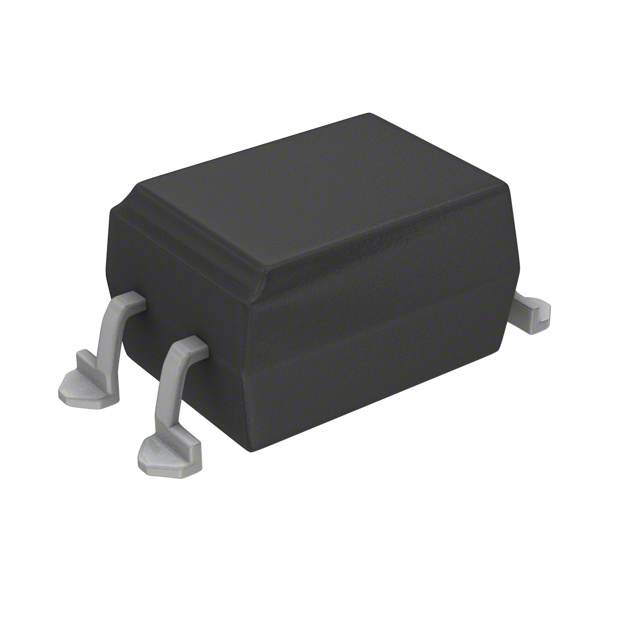

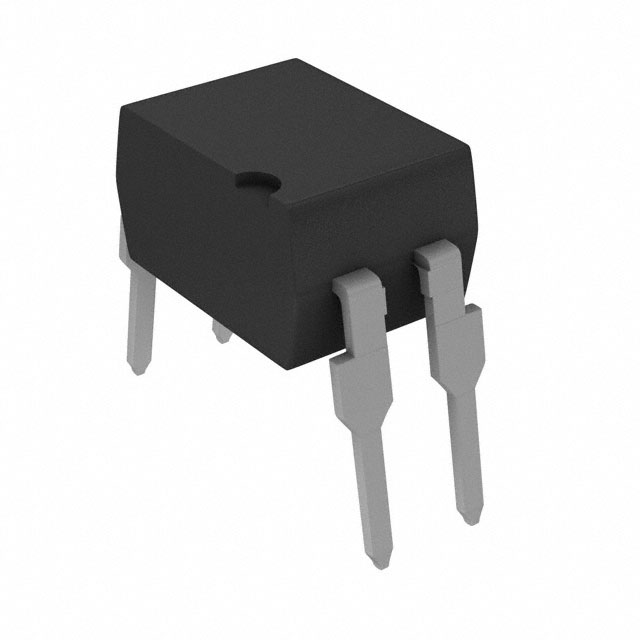

| Part Number | SFH628A-3X017 | SFH628A-3X017T | SFH628A-3X | SFH628A-3X001 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Isocom Components 2004 LTD | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5.3KV TRANS 4SMD | OPTOISOLATOR 5.3KV TRANS 4SMD | 4PIN AC INPUT, SINGLE OPTOCOUPLE | OPTOISOLATOR 5.3KV TRANS 4DIP |
| Series | - | - | SFH628A-3 | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
