SG73S1JTTD9091F

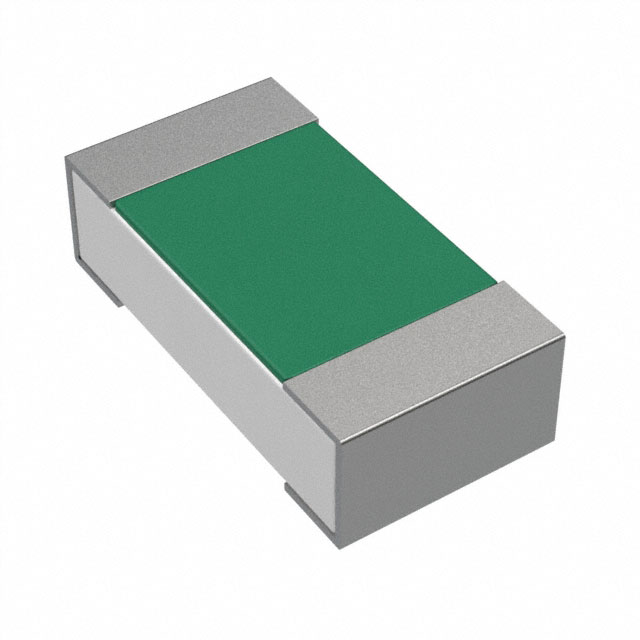

lmages are for reference only.SG73S1JTTD9091F
RES 9.09K OHM 1% 1/5W 0603
Datasheet0603 (1608 Metric)
36,638 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.09 kOhms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
SG73S1JTTD9091F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | KOA Speer Electronics, Inc. |
| Series | SG73S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 9.09 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SG73S1 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SG73S1JTTD9091D | SG73S1JTTD9090D | SG73S1JTTD9090F | SG73S1JTTD9092D |
| Manufacturer | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 9.09K OHM 0.5% 1/5W 0603 | RES 909 OHM 0.5% 1/5W 0603 | RES 909 OHM 1% 1/5W 0603 | RES 90.9K OHM 0.5% 1/5W 0603 |
| Series | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
