SI3437DV-T1-E3

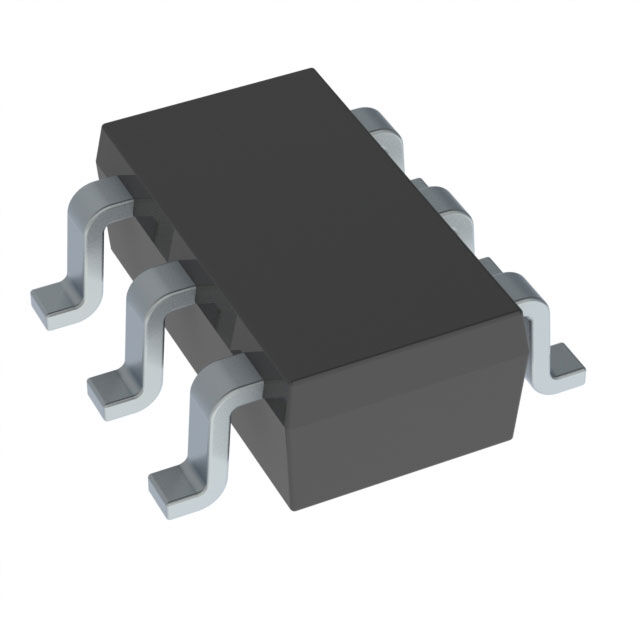

lmages are for reference only.SI3437DV-T1-E3
MOSFET P-CH 150V 1.4A 6TSOP
DatasheetSOT-23-6 Thin, TSOT-23-6
77,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 150 V 1.4A (Tc) 2W (Ta), 3.2W (Tc) Surface Mount 6-TSOP
SI3437DV-T1-E3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 1.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 510 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 3.2W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Base Product Number | SI3437 |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SI3437DV-T1-BE3 | SI3437DV-T1-GE3 | SI3400-TP | SI3400A-TP |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | P-CHANNEL 150-V (D-S) MOSFET | MOSFET P-CH 150V 1.4A 6TSOP | N-CHANNEL MOSFET,SOT-23 | MOSFET N-CH 30V 5.8A SOT23 |
| Series | - | TrenchFET® | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
