SI7326DN-T1-E3

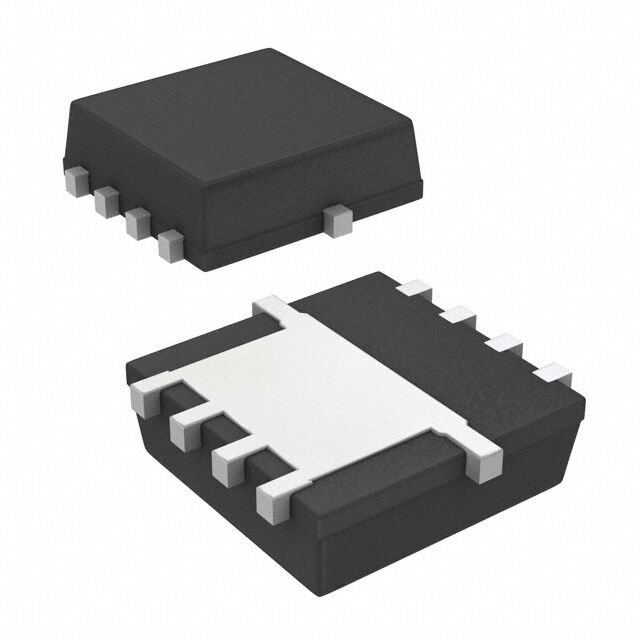

lmages are for reference only.SI7326DN-T1-E3
MOSFET N-CH 30V 6.5A PPAK 1212-8
DatasheetPowerPAK® 1212-8
91,150 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 6.5A (Ta) 1.5W (Ta) Surface Mount PowerPAK® 1212-8
SI7326DN-T1-E3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 19.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
| Base Product Number | SI7326 |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SI7326DN-T1-GE3 | SI7302DN-T1-E3 | SI7302DN-T1-GE3 | SI7308DN-T1-E3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 6.5A PPAK 1212-8 | MOSFET N-CH 220V 8.4A PPAK1212-8 | MOSFET N-CH 220V 8.4A PPAK1212-8 | MOSFET N-CH 60V 6A PPAK1212-8 |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
