SI83402BCA-IFR

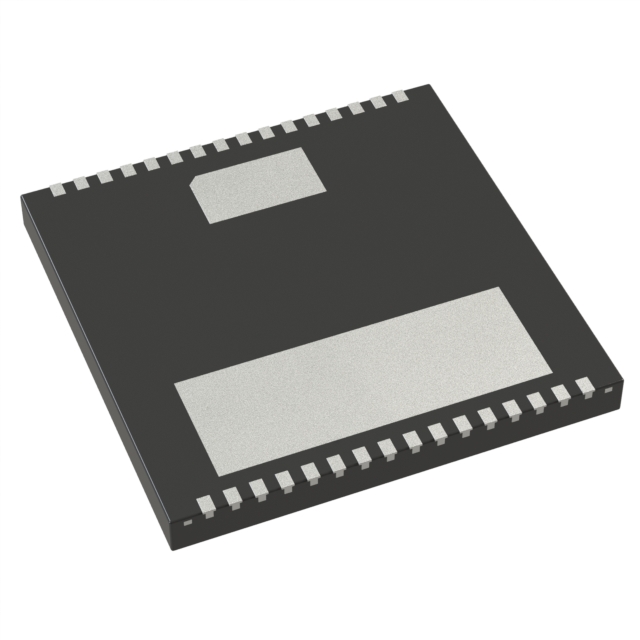

lmages are for reference only.SI83402BCA-IFR
2 CH, ISOLATED SMART SWITCH, SOU
Datasheet32-VFDFN Exposed Pad
97,007 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SPI Digital Isolator 1500Vrms 2 Channel 100kV/µs CMTI 32-VFDFN Exposed Pad
SI83402BCA-IFR
| Category | Isolators - Digital Isolators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si834x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | SPI |
| Isolated Power | Yes |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Bidirectional, Unidirectional |
| Voltage - Isolation | 1500Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 3.5µs, 4.5µs |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 2µs, - |
| Voltage - Supply | 2.25V ~ 5.5V, 9V ~ 32V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFDFN Exposed Pad |
| Supplier Device Package | 32-DFN (9x9) |
| Base Product Number | SI83402 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SI83402BCA-IF | SI83402BAA-IF | SI83402BAA-IFR | SI83402BBA-IF |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2 CH, ISOLATED SMART SWITCH, SOU | 2 CH, ISOLATED SMART SWITCH, SOU | 2 CH, ISOLATED SMART SWITCH, SOU | LINEAR IC'S |
| Series | Si834x | - | - | Si834x |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
