SI86S660BB-AU

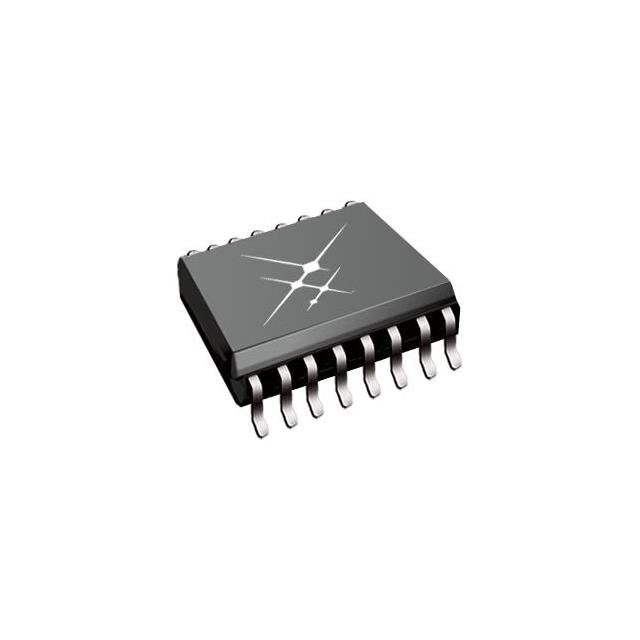

lmages are for reference only.SI86S660BB-AU
2.5 KVRMS ISOLATOR, 6 UNIDIRECTI
Datasheet16-SSOP (0.154", 3.90mm Width)
34,223 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SPI Digital Isolator 2500Vrms 6 Channel 150Mbps 150kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
SI86S660BB-AU
| Category | Isolators - Digital Isolators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | SPI |
| Isolated Power | Yes |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 6/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 42ns, 42ns |
| Pulse Width Distortion (Max) | 2ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | SI86S660 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute | |
 |
 |
|
| Part Number | SI86S660BB-AUR | SI86S660BB-IU | SI86S660BB-IUR | SI86S660BC-AS1 |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 2.5 KVRMS ISOLATOR, 6 UNIDIRECTI | 2.5 KVRMS ISOLATOR, 6 UNIDIRECTI | 2.5 KVRMS ISOLATOR, 6 UNIDIRECTI | 3.75 KVRMS ISOLATOR, 6 UNIDIRECT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
