Product CatalogPart Number
SI8711BD-B-IMR
Manufacturer
Skyworks Solutions Inc.Description
DGTL ISO 5000VRMS 1CH GP 8LGA
Datasheet
DatasheetPackage
8-VELGA
In Stock
82,833 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SI8711BD-B-IMR
SI8711BD-B-IMR
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Digital Isolator 5000Vrms 1 Channel 15Mbps 35kV/µs CMTI 8-VELGA
Quick Inquiry
SI8711BD-B-IMR
Specifications
| Category | Isolators - Digital Isolators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Data Rate | 15Mbps |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Pulse Width Distortion (Max) | 20ns |
| Rise / Fall Time (Typ) | 15ns, 5ns |
| Voltage - Supply | 3V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VELGA |
| Supplier Device Package | 8-LGA (10x12.5) |
| Base Product Number | SI8711 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SI8711BD-B-IM | SI8710AC-AS | SI8710AC-ASR | SI8710AC-B-IP |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | DGTL ISO 5000VRMS 1CH GP 8LGA | AUTOMOTIVE 3.75 KV OPTOCOUPLER R | AUTOMOTIVE 3.75 KV OPTOCOUPLER R | DGTL ISO 3750VRMS 1CH GP 8DIP GW |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
Customers Also Interested in
Recommended Products
SI8710AC-AS
Skyworks Solutions Inc.
SI8710AC-ASR
Skyworks Solutions Inc.
SI8710AC-B-IP
Skyworks Solutions Inc.
SI8710AC-B-IPR
Skyworks Solutions Inc.
SI8710AC-B-IS
Skyworks Solutions Inc.
SI8710AC-B-ISR
Skyworks Solutions Inc.
SI8710AD-B-IS
Skyworks Solutions Inc.
SI8710AD-B-ISR
Skyworks Solutions Inc.
SI8710BC-B-IP
Skyworks Solutions Inc.

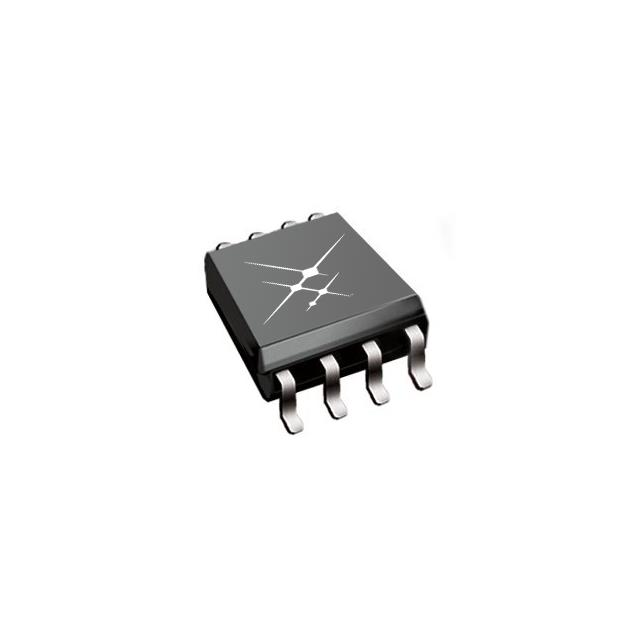

SI8710BC-B-IPR
