SIA444DJT-T4-GE3

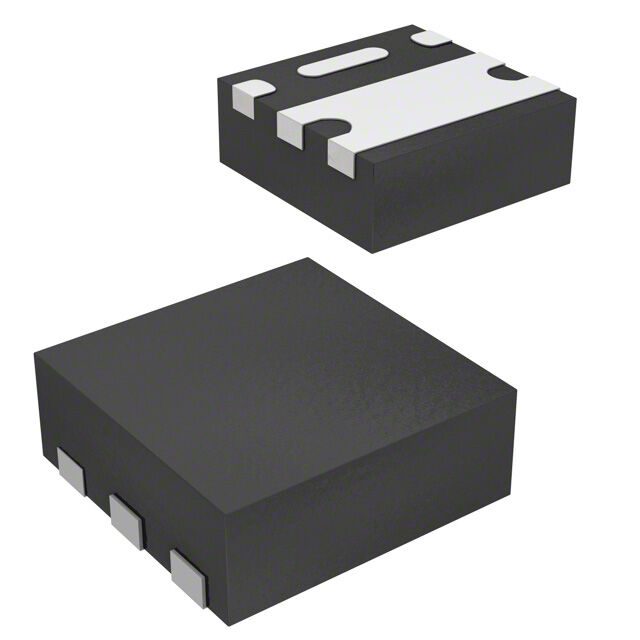

lmages are for reference only.SIA444DJT-T4-GE3
MOSFET N-CH 30V 11A/12A PPAK
DatasheetPowerPAK® SC-70-6
10,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 11A (Ta), 12A (Tc) 3.5W (Ta), 19W (Tc) Surface Mount PowerPAK® SC-70-6
SIA444DJT-T4-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 7.4A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 560 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 19W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 |
| Package / Case | PowerPAK® SC-70-6 |
| Base Product Number | SIA444 |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|

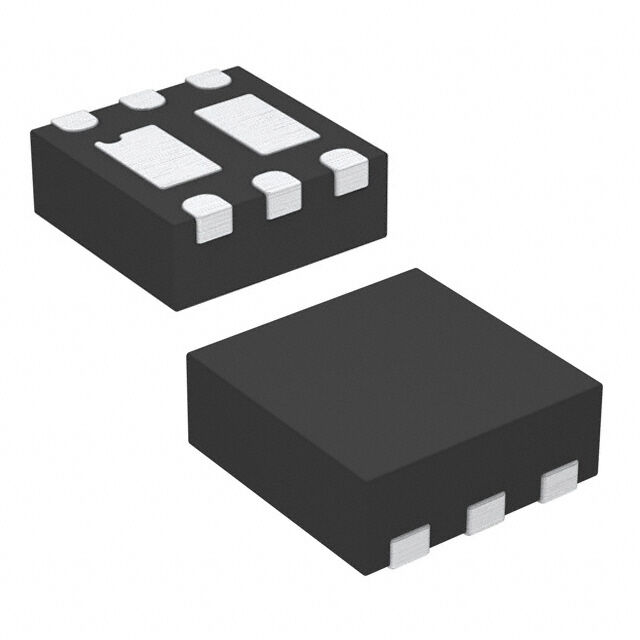

| Part Number | SIA4446DJ-T1-GE3 | SIA444DJT-T1-GE3 | SFP9Z34 | SUP50010E-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | onsemi | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | N-CHANNEL 40 V (D-S) MOSFET POWE | MOSFET N-CH 30V 12A PPAK SC70-6 | MOSFET P-CH 60V 18A TO220-3 | MOSFET N-CH 60V 150A TO220AB |
| Series | TrenchFET® | TrenchFET® | - | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
