SIDR500EP-T1-RE3

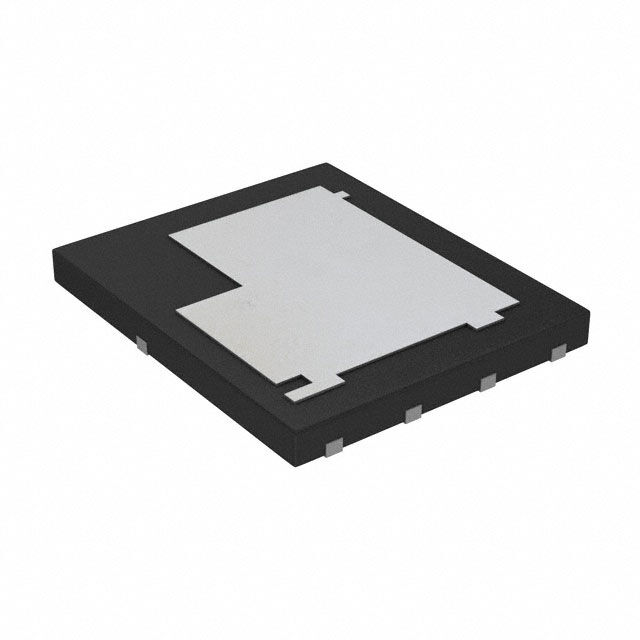

lmages are for reference only.SIDR500EP-T1-RE3
N-CHANNEL 30 V (D-S) 175C MOSFET
DatasheetPowerPAK® SO-8
70,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 94A (Ta), 421A (Tc) 7.5W (Ta), 150W (Tc) Surface Mount PowerPAK® SO-8DC
SIDR500EP-T1-RE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® Gen V |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 94A (Ta), 421A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.47mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | +16V, -12V |
| Input Capacitance (Ciss) (Max) @ Vds | 8960 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 7.5W (Ta), 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8DC |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | SFP9Z34 | SUP50010E-GE3 | SFW9530TM | SPW11N80C3FKSA1 |
| Manufacturer | onsemi | Vishay Siliconix | Fairchild Semiconductor | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET P-CH 60V 18A TO220-3 | MOSFET N-CH 60V 150A TO220AB | MOSFET P-CH 100V 10.5A D2PAK | MOSFET N-CH 800V 11A TO247-3 |
| Series | - | TrenchFET® | - | CoolMOS™ |
| Packaging | Tube | Tube | Bulk | Tube |
