SIHH24N65E-T1-GE3

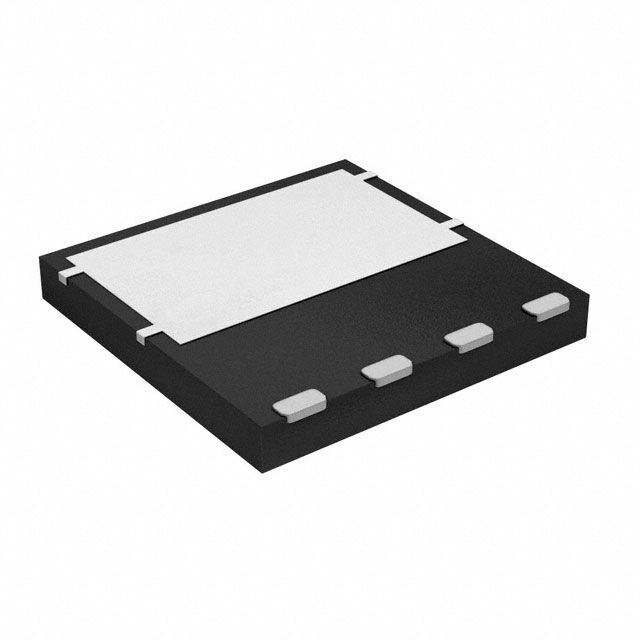

lmages are for reference only.SIHH24N65E-T1-GE3
MOSFET N-CH 650V 23A PPAK 8 X 8
Datasheet8-PowerTDFN
51,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 23A (Tc) 202W (Tc) Surface Mount PowerPAK® 8 x 8
SIHH24N65E-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2814 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 202W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 8 x 8 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | SIHH24 |
| Gate Charge (Qg) (Max) @ Vgs | 116 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | SIHH24N65EF-T1-GE3 | SI4455DY-T1-E3 | SIHP35N60E-BE3 | SI4682DY-T1-E3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 650V 23A PPAK 8 X 8 | MOSFET P-CH 150V 2.8A 8SO | N-CHANNEL 600V | MOSFET N-CH 30V 16A 8SO |
| Series | - | TrenchFET® | E | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
