Product CatalogPart Number
SIZ256DT-T1-GE3
Manufacturer
Vishay SiliconixDescription
MOSFET 2N-CH 70V 11.5A 8PWRPAIR
Datasheet
DatasheetPackage
8-PowerWDFN
In Stock
47,510 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SIZ256DT-T1-GE3
SIZ256DT-T1-GE3
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 70V 11.5A (Ta), 31.8A (Tc) 4.3W (Ta), 33W (Tc) Surface Mount 8-PowerPair® (3.3x3.3)
Quick Inquiry
SIZ256DT-T1-GE3
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® Gen IV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 70V |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta), 31.8A (Tc) |
| Rds On (Max) @ Id, Vgs | 17.6mOhm @ 7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1060pF @ 35V |
| Power - Max | 4.3W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (3.3x3.3) |
| Base Product Number | SIZ256 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
.jpg "TPC8211(TE12L,Q,M)") |
 |

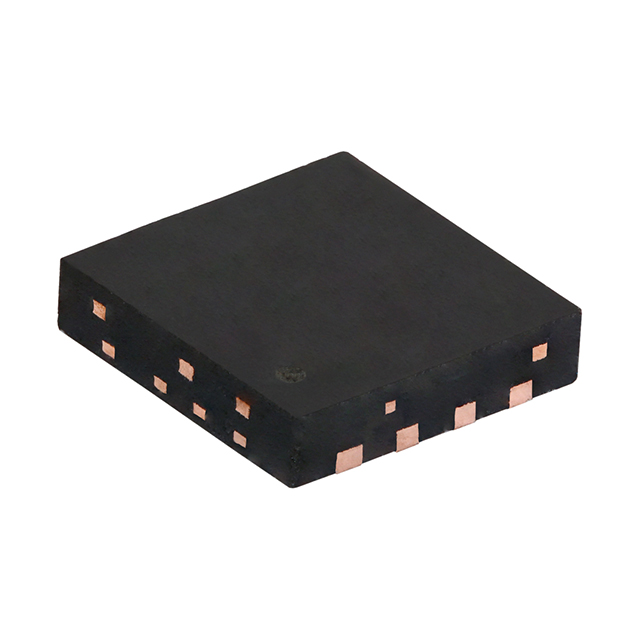

| Part Number | SIZ250DT-T1-GE3 | SIZ254DT-T1-GE3 | TPC8211(TE12L,Q,M) | SI3590DV-T1-E3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Toshiba Semiconductor and Storage | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 60V 14A 8POWERPAIR | MOSFET 2N-CH 70V 11.7A 8PWRPAIR | MOSFET 2N-CH 30V 5.5A 8SOP | MOSFET N/P-CH 30V 2.5A 6TSOP |
| Series | TrenchFET® Gen IV | TrenchFET® Gen IV | - | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
