SM15T68CA-M3/9AT
lmages are for reference only.SM15T68CA-M3/9AT
TVS DIODE 58.1VWM 92VC DO214AB
DatasheetDO-214AB, SMC
69,123 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
92V Clamp 16.3A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
SM15T68CA-M3/9AT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | SM15T, TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 58.1V |
| Voltage - Breakdown (Min) | 64.6V |
| Voltage - Clamping (Max) @ Ipp | 92V |
| Current - Peak Pulse (10/1000µs) | 16.3A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | SM15T68 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

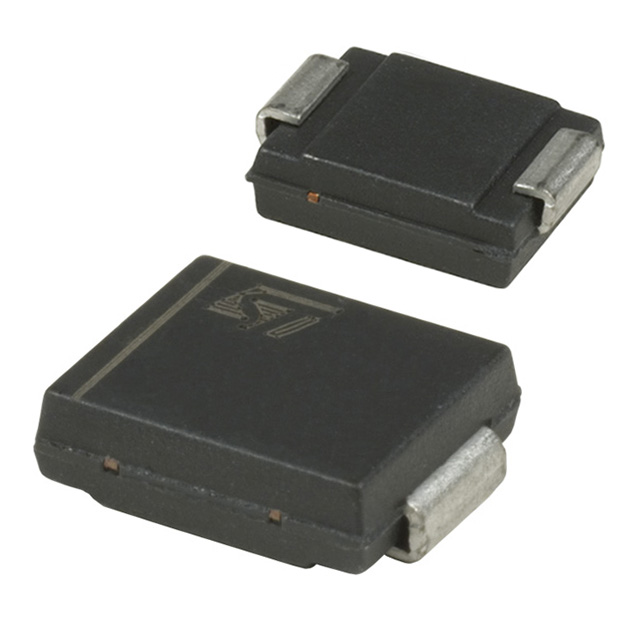

| Part Number | SM15T68CA-E3/57T | SM15T68CA-E3/9AT | SM15T68CA-M3/57T | SM15T68A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 58.1VWM 92VC DO214AB | TVS DIODE 58.1VWM 92VC DO214AB | TVS DIODE 58.1VWM 92VC DO214AB | TVS DIODE 58.1VWM 121VC SMC |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
