SM5018-R47MHF
lmages are for reference only.SM5018-R47MHF
FIXED IND 470NH 38A 1.3MOHM SMD
DatasheetNonstandard
91,650 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Shielded Inductor 38 A 1.3mOhm Max Nonstandard
SM5018-R47MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SM5018 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 38 A |
| Current - Saturation (Isat) | 65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

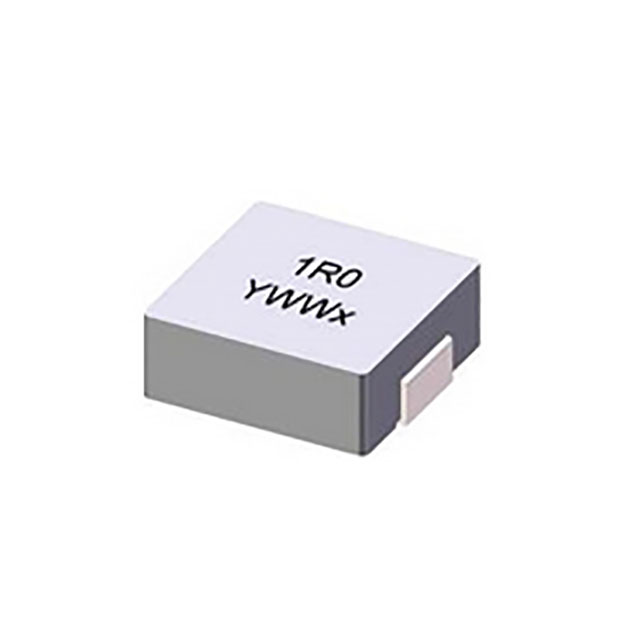

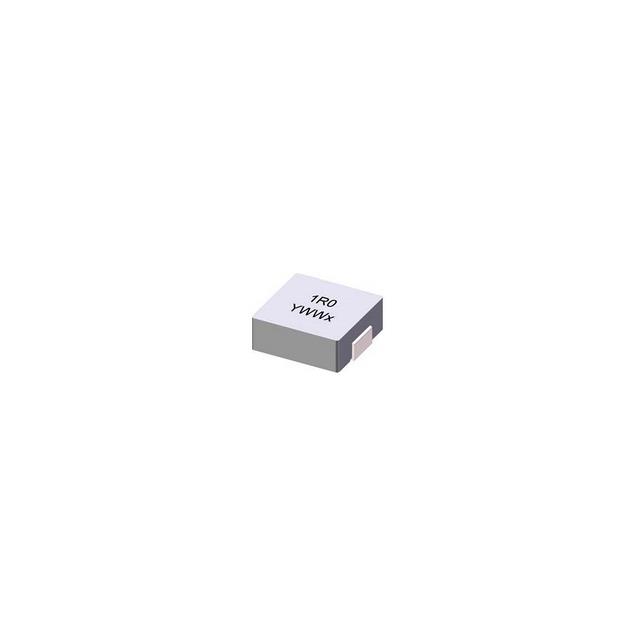

| Part Number | SM5018-R47MHF-CT | SM5018-1R0MHF | SM5018-1R0MHF-CT | SM5018-R68MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 0.47uH, 20%, 1.1mOhm, 65Amp Max. | FIXED IND 1UH 29A 2.5 MOHM SMD | 1uH, 20%, 2.1mOhm, 50Amp Max. SM | FIXED IND 680NH 34A 1.7MOHM SMD |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Strip | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
