SM6S26A-AU_R2_000A1
lmages are for reference only.SM6S26A-AU_R2_000A1
4.6KW SURFACE MOUNT TRANSIENT VO
DatasheetDO-218AB
31,949 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
42.1V Clamp 109A Ipp Tvs Diode Surface Mount DO-218AB
SM6S26A-AU_R2_000A1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 109A |
| Power - Peak Pulse | 4600W (4.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | SM6S26 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

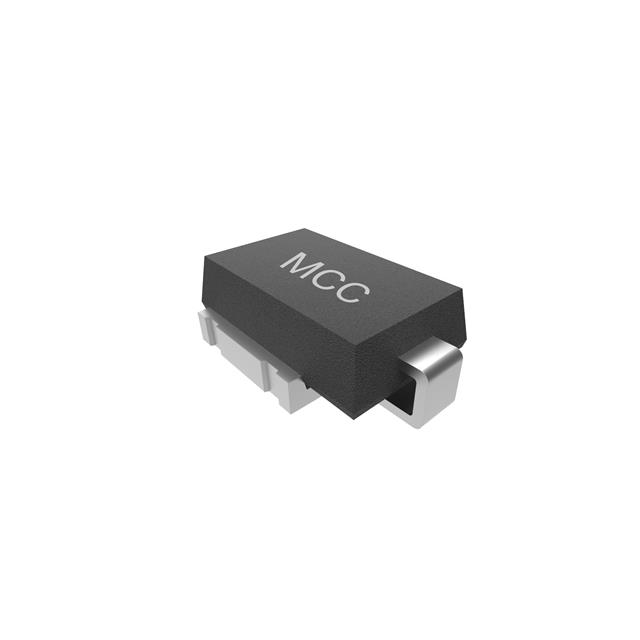

| Part Number | SM6S10A-E3/2D | SM6S10A-TP | SM6S10AHE3/2D | SM6S10AHE3_A/I |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 10VWM 17VC DO218AB | Interface | TVS DIODE 10VWM 17VC DO218AB | TVS DIODE 10VWM 17VC DO218AB |
| Series | Vishay General Semiconductor - Diodes Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
