SM8S14AHE3_A/I

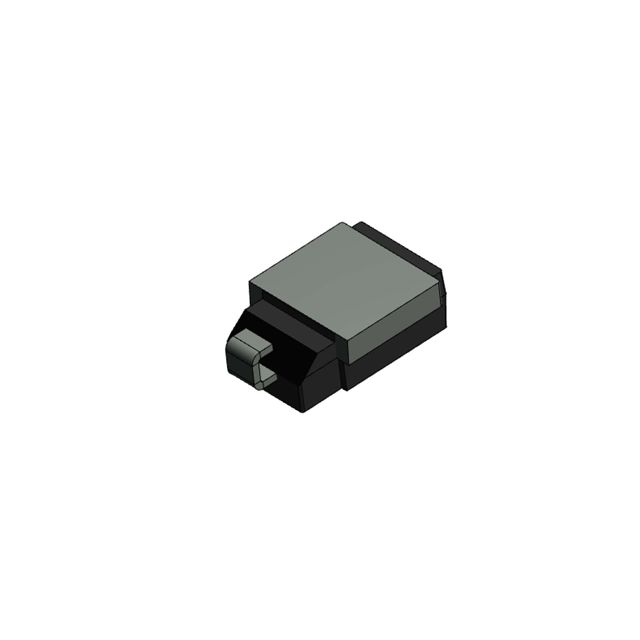

lmages are for reference only.SM8S14AHE3_A/I
TVS DIODE 14VWM 23.2VC DO218AB
DatasheetDO-218AB
75,280 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
23.2V Clamp 284A Ipp Tvs Diode Surface Mount DO-218AB
SM8S14AHE3_A/I
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 23.2V |
| Current - Peak Pulse (10/1000µs) | 284A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | SM8S14 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | SM8S14AH | SM8S14AHE3-TP | SM8S14AHE3/2D | SM8S10A |
| Manufacturer | Eaton - Electronics Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | MDD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 14VWM UNI | TVS DIODES | TVS DIODE 14VWM 23.2VC DO218AB | TVS DIODE UNI 10VWM DO218AB |
| Series | Eaton - Electronics Division | Micro Commercial Co | Vishay General Semiconductor - Diodes Division | MDD |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
